XIH-S Series - Indoor LED Display
Eye-catching Display
The COB product is encapsulated with black epoxy resin on the surface, ensuring color uniformity and brightness consistency. Experience true-to-life, vibrant colors delivered by its >110% DCI-P3 color gamut, combined with stunning depth and crisp details even in deep blacks.
Extreme Reliability
The flip-chip COB LED eliminates bonding wires by directly soldering electrodes onto the PCB, eliminating concerns about wire breakage. Its integrated packaging structure significantly enhances environmental resistance. The hard-wired interconnection further ensures higher reliability.
Energy Efficient
With an ultra‑efficient power design, the XIH-S series offers exceptional brightness, reduced energy consumption and reliable performance — making it perfect for demanding professional environments.
Quick Installation and Easy Maintenance
Effortless front access for installation and maintenance saves valuable space. It offers versatile installation options, such as wall mounting and hanging, to seamlessly fit different environments.

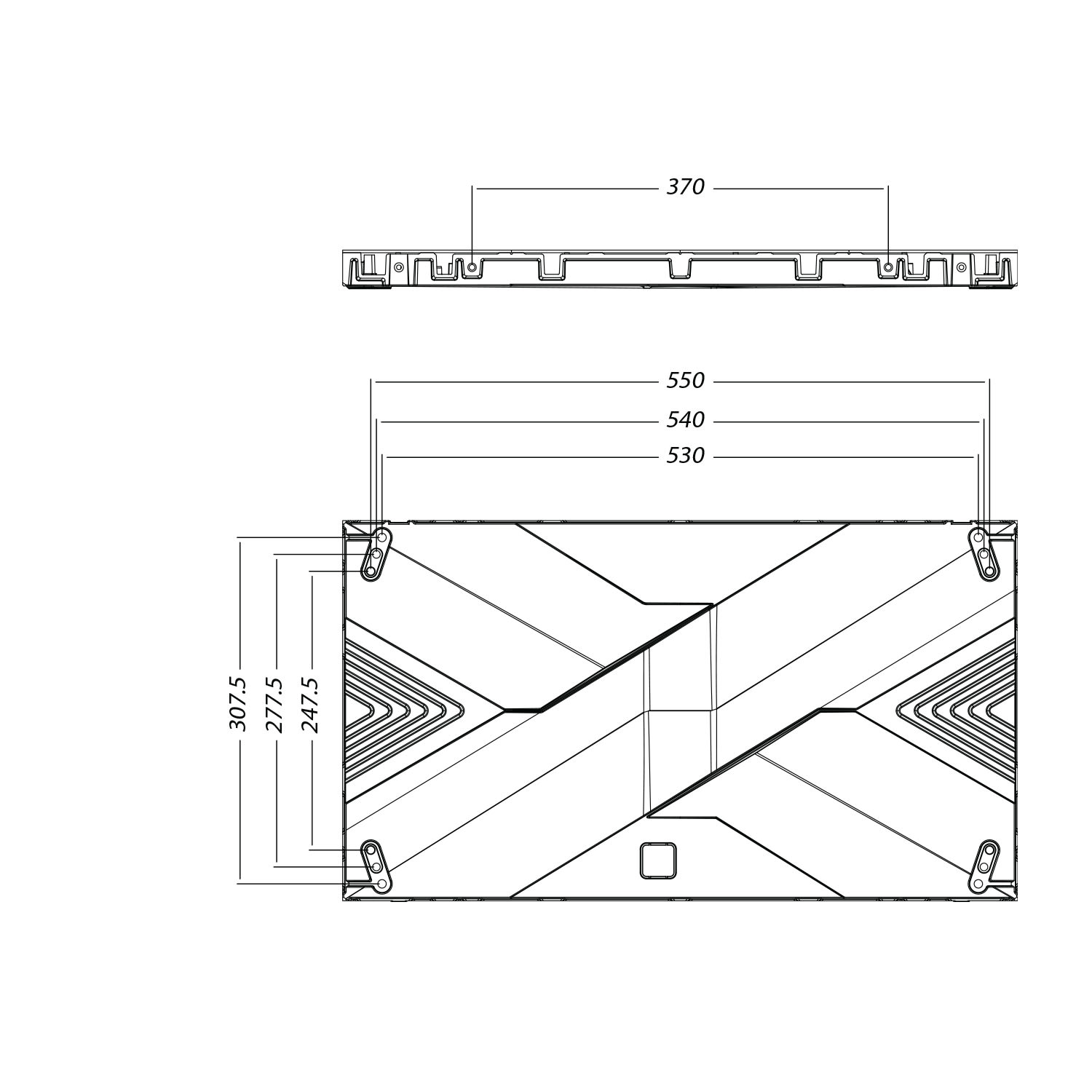

Dimensions
Connectivity
Model: XIH007-S
Pixel Pitch: P0.78mm
Pixel Configuration: Flip-chip COB (1, Red, 1 Green, 1 Blue)
Module Resolution (W x H): 192 x 216
Module Dimension (W x H): 150 x 168.75mm / 5.91 x 6.64 inch
Cabinet Resolution (W x H): 768 x 432
Cabinet Dimension (W x H x D): 600 x 337.5 x 34.3 mm / 23.62 x 13.29 x 1.35 inch
No. of Modules per Cabinet (W x H): 4 x 2
Cabinet Weight: 4.04 kg / 8.91 lbs
Cabinet Materials: Die-cast Aluminum
Brightness (Typ.): 600 nits
Brightness (Customizable.): 1,000 nits
Contrast Ratio: 10,000:1@10lux
Visual Viewing Angle (H x V): 155° x 155°
Bit Depth: 13 bit (13~15 bit Customizable)
Color Temperature: 8,500K + 500K
Color Gamut: >110% BT.2020
Brightness Uniformity: 97%
Color Uniformity: + 0.003 Cx,Cy
Video Frame Rate: 60 Hz
Max Power Consumption: 420 (W/m2)
Avg Power Consumption: 168 (W/m2)
Max Heat Generation: 1,433 (BTU/m2)
Avg Heat Generation: 573 (BTU/m2)
Power Supply: 100~240 V AC
Refresh Rate: 3,840 Hz
Operating Temp / Humidity: -10~45°C / 10~90% RH
Storage Temp / Humidity: -20~60°C / 10~90% RH
IP Rating: IP20
Lifetime: 100,000 Hrs
Certification: CE, CB, FCC, cTUVus
Maintenance: Front Access
Model: XIH015-S
Pixel Pitch: P1.56mm
Pixel Configuration: Flip-chip COB (1, Red, 1 Green, 1 Blue)
Module Resolution (W x H): 96 x 108
Module Dimension (W x H): 150 x 168.75mm / 5.91 x 6.64 inch
Cabinet Resolution (W x H): 384 x 216
Cabinet Dimension (W x H x D): 600 x 337.5 x 34.3 mm / 23.62 x 13.29 x 1.35 inch
No. of Modules per Cabinet (W x H): 4 x 2
Cabinet Weight: 4.04 kg / 8.91 lbs
Cabinet Materials: Die-cast Aluminum
Brightness (Typ.): 600 nits
Brightness (Customizable.): 800 nits
Contrast Ratio: 10,000:1@10lux
Visual Viewing Angle (H x V): 155° x 155°
Bit Depth: 13 bit (13~15 bit Customizable)
Color Temperature: 8,500K + 500K
Color Gamut: >110% BT.2020
Brightness Uniformity: 97%
Color Uniformity: + 0.003 Cx,Cy
Video Frame Rate: 60 Hz
Max Power Consumption: 373 (W/m2)
Avg Power Consumption: 150 (W/m2)
Max Heat Generation: 1,273 (BTU/m2)
Avg Heat Generation: 512 (BTU/m2)
Power Supply: 100~240 V AC
Refresh Rate: 3,840 Hz
Operating Temp / Humidity: -10~45°C / 10~90% RH
Storage Temp / Humidity: -20~60°C / 10~90% RH
IP Rating: IP20
Lifetime: 100,000 Hrs
Certification: CE, CB, FCC, cTUVus
Maintenance: Front Access
Model: XIH009-S
Pixel Pitch: P0.9375mm
Pixel Configuration: Flip-chip COB (1, Red, 1 Green, 1 Blue)
Module Resolution (W x H): 160 x 180
Module Dimension (W x H): 150 x 168.75mm / 5.91 x 6.64 inch
Cabinet Resolution (W x H): 640 x 360
Cabinet Dimension (W x H x D): 600 x 337.5 x 34.3 mm / 23.62 x 13.29 x 1.35 inch
No. of Modules per Cabinet (W x H): 4 x 2
Cabinet Weight: 4.04 kg / 8.91 lbs
Cabinet Materials: Die-cast Aluminum
Brightness (Typ.): 600 nits
Brightness (Customizable.): 1,000 nits
Contrast Ratio: 10,000:1@10lux
Visual Viewing Angle (H x V): 155° x 155°
Bit Depth: 13 bit (13~15 bit Customizable)
Color Temperature: 8,500K + 500K
Color Gamut: >110% BT.2020
Brightness Uniformity: 97%
Color Uniformity: + 0.003 Cx,Cy
Video Frame Rate: 60 Hz
Max Power Consumption: 420 (W/m2)
Avg Power Consumption: 168 (W/m2)
Max Heat Generation: 1,433 (BTU/m2)
Avg Heat Generation: 573 (BTU/m2)
Power Supply: 100~240 V AC
Refresh Rate: 3,840 Hz
Operating Temp / Humidity: -10~45°C / 10~90% RH
Storage Temp / Humidity: -20~60°C / 10~90% RH
IP Rating: IP20
Lifetime: 100,000 Hrs
Certification: CE, CB, FCC, cTUVus
Maintenance: Front Access
Model: XIH012-S
Pixel Pitch: P1.25mm
Pixel Configuration: Flip-chip COB (1, Red, 1 Green, 1 Blue)
Module Resolution (W x H): 120 x 135
Module Dimension (W x H): 150 x 168.75mm / 5.91 x 6.64 inch
Cabinet Resolution (W x H): 480 x 270
Cabinet Dimension (W x H x D): 600 x 337.5 x 34.3 mm / 23.62 x 13.29 x 1.35 inch
No. of Modules per Cabinet (W x H): 4 x 2
Cabinet Weight: 4.04 kg / 8.91 lbs
Cabinet Materials: Die-cast Aluminum
Brightness (Typ.): 600 nits
Brightness (Customizable.): 1,000 nits
Contrast Ratio: 10,000:1@10lux
Visual Viewing Angle (H x V): 155° x 155°
Bit Depth: 13 bit (13~15 bit Customizable)
Color Temperature: 8,500K + 500K
Color Gamut: >110% BT.2020
Brightness Uniformity: 97%
Color Uniformity: + 0.003 Cx,Cy
Video Frame Rate: 60 Hz
Max Power Consumption: 350 (W/m2)
Avg Power Consumption: 140 (W/m2)
Max Heat Generation: 1,194 (BTU/m2)
Avg Heat Generation: 478 (BTU/m2)
Power Supply: 100~240 V AC
Refresh Rate: 3,840 Hz
Operating Temp / Humidity: -10~45°C / 10~90% RH
Storage Temp / Humidity: -20~60°C / 10~90% RH
IP Rating: IP20
Lifetime: 100,000 Hrs
Certification: CE, CB, FCC, cTUVus
Maintenance: Front Access
