RNM Series

RNM Series - Indoor LED Display


Featuring quick installation and easy maintenance, with a 7680Hz refresh rate and 4000:1 contrast ratio, the RNM Series delivers true-to-life images and reliable performance, while its 45° edge-cutting design and adjustable angle configurations from outer -10° to inner +10° help you realise creative curved installation effortlessly. Additionally, the series offers a versatile range of pixel pitches from 1.9mm to 3.9mm, ensuring optimal performance for different application requirements.

Quick Installation and Easy Maintenance

The RNM series offers versatile installation options, supporting both front and rear installation and maintenance, wall-mounting and hanging are selectable, this display is designed to seamlessly adapt to a wide range of application scenarios.

Eye-catching Display

Boasting 1100nits brightness, a remarkable 7680Hz refresh rate, and 4000:1 contrast ratio, the display delivers exceptionally vibrant colors and produces stunning, visually captivating imagery.

Energy-saving and Low Power Consumption

The display incorporates an energy-efficient 4.5V low-power design, significantly reducing energy consumption and resource utilization, thereby ensuring cost-effective operation with minimal environmental impact.

Durable and Trustworthy

The RNM series features an innovative modular architecture, integrating power and signal distribution systems within a unified rear cover, enabling independent hot-swappable functionality for enhanced maintenance efficiency.

Creative Curved Installation

The RNM features a 45° edge-cutting design on both sides, facilitating seamless 90° arc formation for immersive display configurations. It offers adjustable angle configurations from outer -10° to inner +10° to create a curved screen with high flatness.

Anti-collision Design

The display features a comprehensive protection system, including an high-brimmed face shield that safeguards LED modules from frontal impacts, complemented by flip-over protective corners around the cabinet to effectively protect the edge LED.

Dual Backup Interface

The RNM series features default aviation plug, and quad-port network architecture enables dual backup signal, to make sure that the signal can be switched to the backup signal in a timely manner, ensuring the continuity and stability of the displayed content.

Stability in Extreme Environments

The RNM series has passed rigorous certification testing, including vibration, temperature, and high-voltage grounding insulation, ensuring exceptional reliability even in harsh environments.

tab

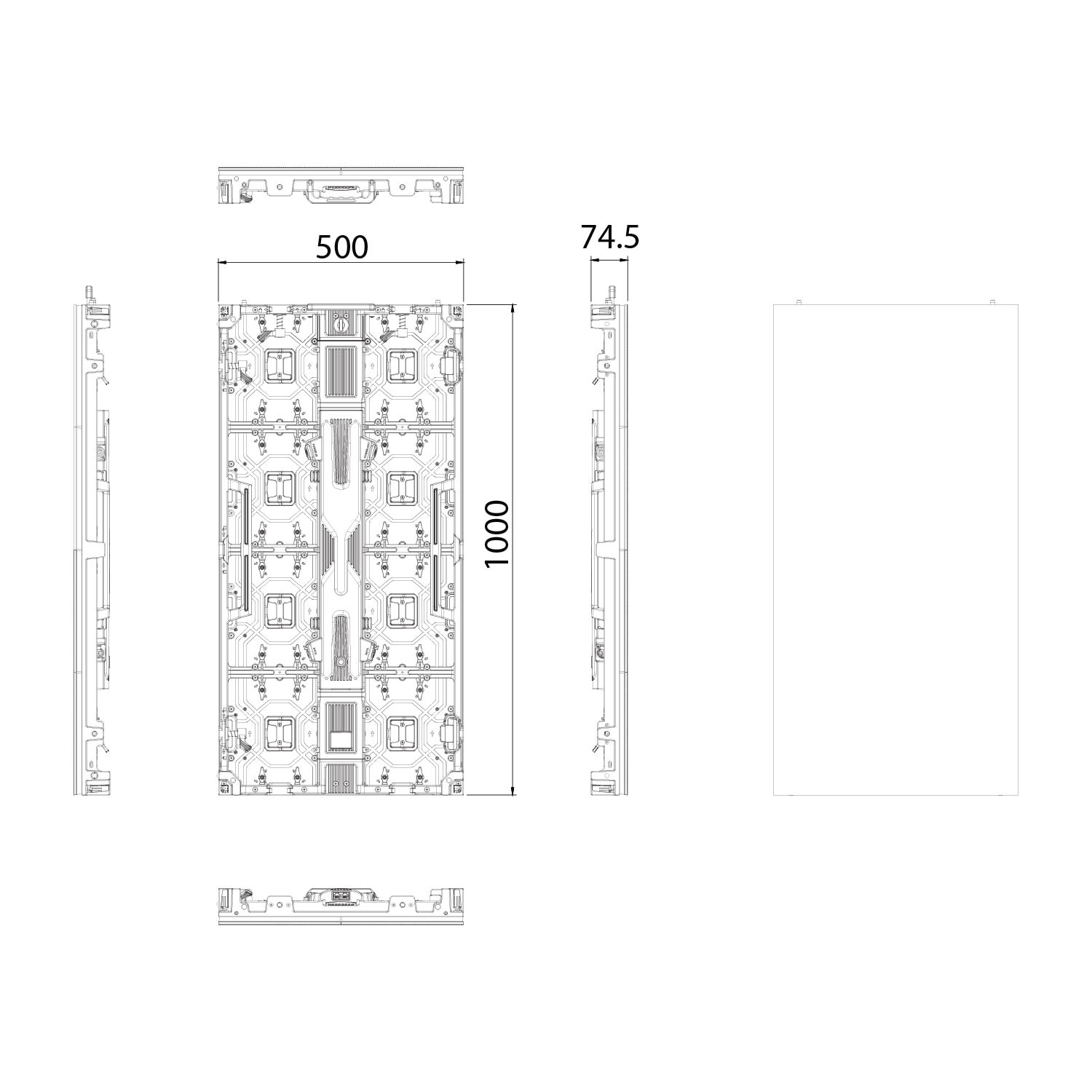

Dimensions


Connectivity


Model: RNM019FE
Pixel Pitch: 1.953
mm

Pixel Configuration: SMD Copper Wire / SMD1515
Module Resolution (W x H): 128 x 128
Module Dimension (W x H): 250 x 250mm / 9.84 x 9.84inch
Cabinet Resolution (W x H): 256 x 256mm / 256 x 512
Cabinet Dimension (W x H x D): 500 x 500 x 75mm / 19.69 x 19.69 x 2.95inch // 500 x 1000 x 75mm / 19.69 x 39.37 x 2.95inch
No. of Modules per Cabinet (W x H): 2 x 2 / 2 x 4
Cabinet Weight: 6.5kg / 14.33lbs // 12kg / 26.45lbs
Cabinet Materials: Die-cast Aluminium
Brightness (typ.): 1000 / 1100 nits
Contrast Ratio: 4,000:1 (According to the current Hisense test environment)
Visual Viewing Angle (H x V): 150° x 140°
Bit Depth: 14 bit
Colour Temperature: 6500K + 500K
Max Power Consumption per Cabinet: 163W (500 x 500mm) / 325W (500 x 1000mm)
Avg Power Consumption per Unit Area: 50 (500 x 500mm) / 100 (500 x 1000mm)
Max Power Consumption per Unit Area: 650 W/m2
Avg Power Consumption per Unit Area: 200 W/m2
Power Supply: 100~240 V AC
Refresh Rate: 7680 Hz
Operating Temp / Humidity: -20~50°C / 10~80% RH
Storage Temp / Humidity: -40~60°C / 10~85% RH
IP Rating: Front IP65 & Rear IP65
Lifetime: 100,000 Hrs
Maintenance: Module Front & Rear Access / Power Supply Rear Access


Model: RNM039FE
Pixel Pitch: 3.91
mm

Pixel Configuration: SMD Copper Wire / SMD2121
Module Resolution (W x H): 64 x 64
Module Dimension (W x H): 250 x 250mm / 9.84 x 9.84inch
Cabinet Resolution (W x H): 128 x 128 / 128 x 256
Cabinet Dimension (W x H x D): 500 x 500 x 75mm / 19.69 x 19.69 x 2.95inch // 500 x 1000 x 75mm / 19.69 x 39.37 x 2.95inch
No. of Modules per Cabinet (W x H): 2 x 2 / 2 x 4
Cabinet Weight: 6.5kg / 14.33lbs // 12kg / 26.45lbs
Cabinet Materials: Die-cast Aluminium
Brightness (typ.): 1100 / 1200 nits
Contrast Ratio: 4,000:1 (According to the current Hisense test environment)
Visual Viewing Angle (H x V): 150° x 140°
Bit Depth: 14 bit
Colour Temperature: 6500K + 500K
Max Power Consumption per Cabinet: 163W (500 x 500mm) / 325W (500 x 1000mm)
Avg Power Consumption per Unit Area: 50 (500 x 500mm) / 100 (500 x 1000mm)
Max Power Consumption per Unit Area: 650 W/m2
Avg Power Consumption per Unit Area: 200 W/m2
Power Supply: 100~240 V AC
Refresh Rate: 7680 Hz
Operating Temp / Humidity: -20~50°C / 10~80% RH
Storage Temp / Humidity: -40~60°C / 10~85% RH
IP Rating: Front IP65 & Rear IP65
Lifetime: 100,000 Hrs
Maintenance: Module Front & Rear Access / Power Supply Rear Access

Model: RNM026FE
Pixel Pitch: 2.604
mm

Pixel Configuration: SMD Copper Wire / SMD1515
Module Resolution (W x H): 96 x 96
Module Dimension (W x H): 250 x 250mm / 9.84 x 9.84inch
Cabinet Resolution (W x H): 192 x 192 / 192 x 384
Cabinet Dimension (W x H x D): 500 x 500 x 75mm / 19.69 x 19.69 x 2.95inch // 500 x 1000 x 75mm / 19.69 x 39.37 x 2.95inch
No. of Modules per Cabinet (W x H): 2 x 2 / 2 x 4
Cabinet Weight: 6.5kg / 14.33lbs // 12kg / 26.45lbs
Cabinet Materials: Die-cast Aluminium
Brightness (typ.): 1000 / 1100 nits
Contrast Ratio: 4,000:1 (According to the current Hisense test environment)
Visual Viewing Angle (H x V): 150° x 140°
Bit Depth: 14 bit
Colour Temperature: 6500K + 500K
Max Power Consumption per Cabinet: 163W (500 x 500mm) / 325W (500 x 1000mm)
Avg Power Consumption per Unit Area: 50 (500 x 500mm) / 100 (500 x 1000mm)
Max Power Consumption per Unit Area: 650 W/m2
Avg Power Consumption per Unit Area: 200 W/m2
Power Supply: 100~240 V AC
Refresh Rate: 7680 Hz
Operating Temp / Humidity: -20~50°C / 10~80% RH
Storage Temp / Humidity: -40~60°C / 10~85% RH
IP Rating: Front IP65 & Rear IP65
Lifetime: 100,000 Hrs
Maintenance: Module Front & Rear Access / Power Supply Rear Access

Model: RNM029FE
Pixel Pitch: 2.976
mm

Pixel Configuration: SMD Copper Wire / SMD1515
Module Resolution (W x H): 84 x 84
Module Dimension (W x H): 250 x 250mm / 9.84 x 9.84inch
Cabinet Resolution (W x H): 168 x 168 / 168 x 336
Cabinet Dimension (W x H x D): 500 x 500 x 75mm / 19.69 x 19.69 x 2.95inch // 500 x 1000 x 75mm / 19.69 x 39.37 x 2.95inch
No. of Modules per Cabinet (W x H): 2 x 2 / 2 x 4
Cabinet Weight: 6.5kg / 14.33lbs // 12kg / 26.45lbs
Cabinet Materials: Die-cast Aluminium
Brightness (typ.): 1000 / 1100 nits
Contrast Ratio: 4,000:1 (According to the current Hisense test environment)
Visual Viewing Angle (H x V): 150° x 140°
Bit Depth: 14 bit
Colour Temperature: 6500K + 500K
Max Power Consumption per Cabinet: 163W (500 x 500mm) / 325W (500 x 1000mm)
Avg Power Consumption per Unit Area: 75 (500 x 500mm) / 150 (500 x 1000mm)
Max Power Consumption per Unit Area: 800 W/m2
Avg Power Consumption per Unit Area: 300 W/m2
Power Supply: 100~240 V AC
Refresh Rate: 7680 Hz
Operating Temp / Humidity: -20~50°C / 10~80% RH
Storage Temp / Humidity: -40~60°C / 10~85% RH
IP Rating: Front IP65 & Rear IP65
Lifetime: 100,000 Hrs
Maintenance: Module Front & Rear Access / Power Supply Rear Access
