HTJ Series

HTJ Series - Indoor LED Display


HTJ series LED solutions deliver unrivalled versatility due to the variety of cabinet configurations available. Integrators specifying the HTJ range have access to the broadest range of pixel pitch and aspect ratios options. Perfect for any internal space, these innovative Hisense LED modules include cable-less internal construction and full frontal access for ease of maintenance.

Ultra Picture Quality Chip

Relying on Hisense’s super picture quality chip, supported by powerful algorithms, colour enhancement, multi-grayscale correction, MEMC, HDR, SR super resolution four major picture quality technologies, the picture quality is more detailed and vivid.

Automatic PQ Adjustment

Hisense HTJ series, the spare lamp board can be directly replaced, intelligent reading lamp board data, automatically complete the colour correction

Black Coating Technology

COB products are sealed with black epoxy resin on the surface, which guarantees a uniform color.

Extremely Reliable

Flip-chip COB LED with no solder lines and electrodes directly welded to the PCB. No need to worry about the problem of easy breakage of the solder wire, it’s more reliable.

Extremely Reliable

Flip-chip COB LED with no solder lines and electrodes directly welded to the PCB. No need to worry about the problem of easy breakage of the solder wire, it’s more reliable.

Quick Installation and Easy Maintenance

Full front installation, maintenance, save the installation space. Also supporting multiple installations, wall-mounting, hanging, which can meet the demands of various environments.

Better Protection

Compared to SMD packaging, COB is one-piece potting sealing to protect important electronic devices. The display screen has the advantages of moisture-proof and anti-static, you can directly wipe the screen with water.

Large Screen Splicing

Perfect 16:9 display ratio and can be spliced into standard resolution of 2K/4K.

tab

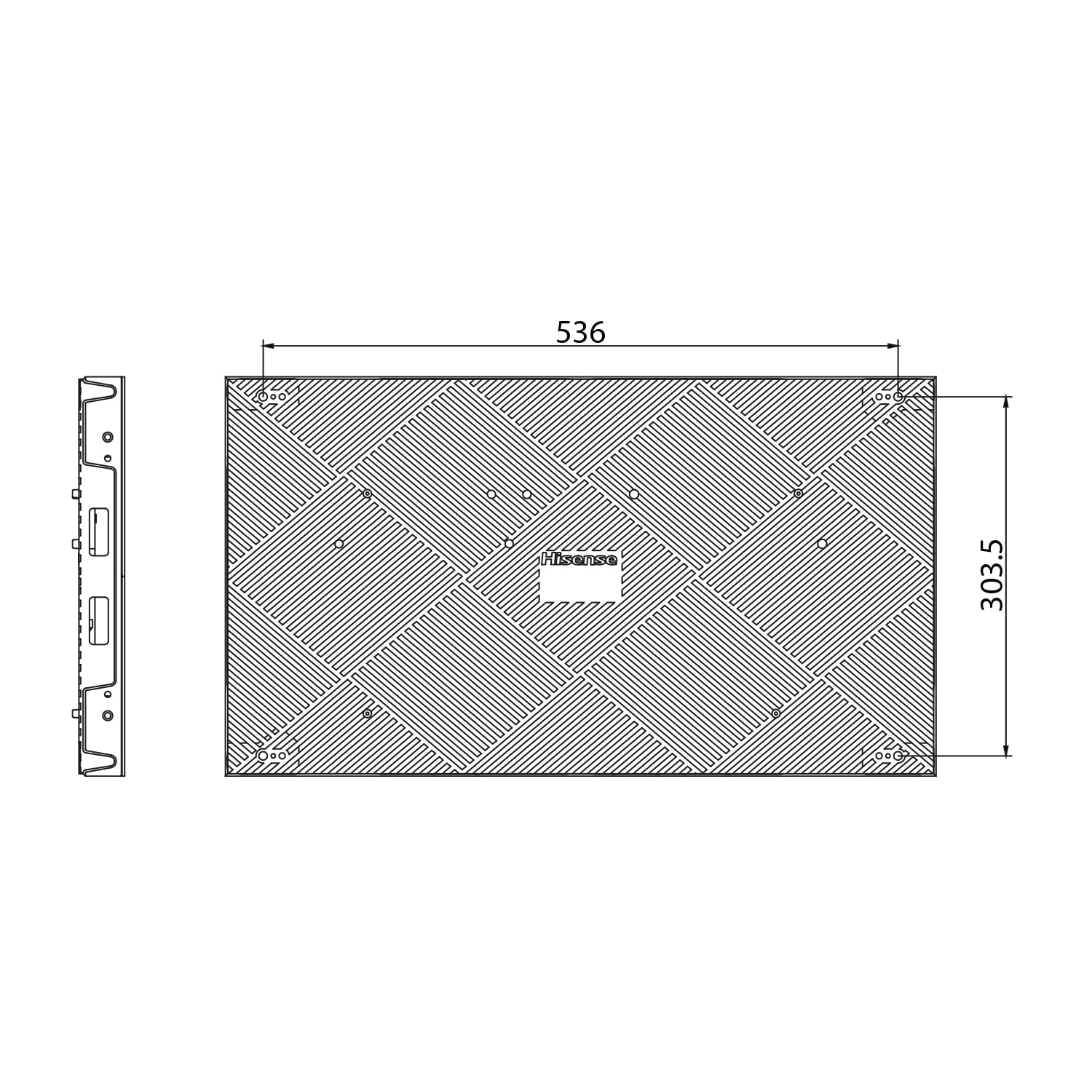

Dimensions


Connectivity


Pixel Pitch: P0.9375
LED Package: COB
Thickness: (Excluding protrusions part) 38.7mm / 1.52 inch
Module Resolution: 160 x 180
Module Size (W/H): 150 x 168.75mm / 5.91 x 6.64 inch

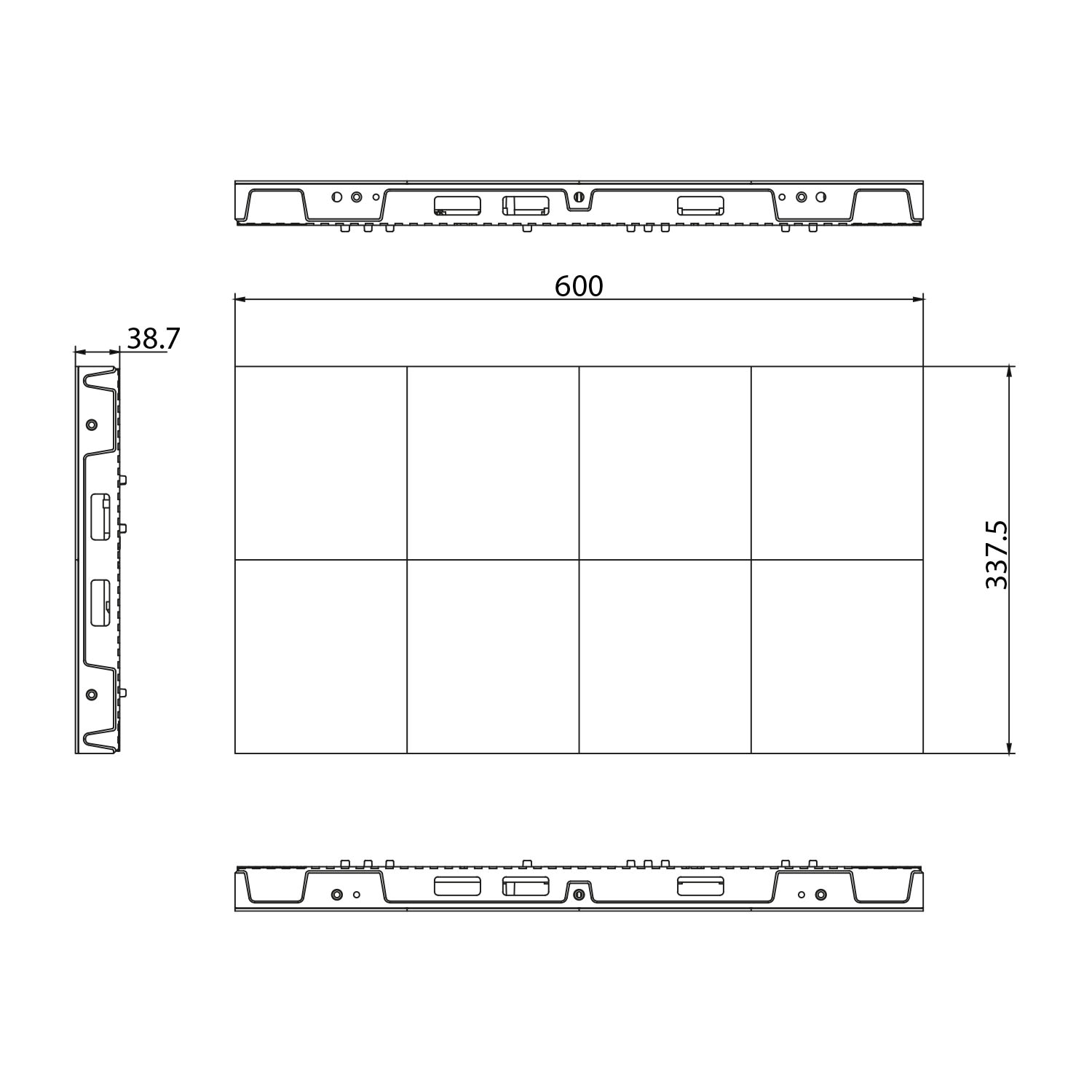

Cabinet Dimension: (W/H) 600 x 337.5mm / 23.62 x 13.29 inch
Cabinet Resolution: 640 x 360
Cabinet Weight (panel): ≤4.5kg / ≤9.92lbs
Cabinet Materials: Die-cast Aluminium
Brightness (typ.): 600nits
Contrast Ratio: ≥10,000:1 (According to the current Hisense test enviroment)
Connectivity: HDMI 2.0 (up to 4K@60Hz)
Maintenance: Front Access
IP Rating: Front IP61
Max Power Consumption (W/sqm): ≤350
Avg Power Consumption (W/sqm): ≤120
Viewing Angle (H/V°): 165 / 150
Refresh Rate (Hz): 3,840
Operating Enviroment: From 0~40°C
Relative Humidity: 10~70%RH
Lifetime (typ.): 100,000 Hrs
