XOM Series

XOM Series - Outdoor LED Display


XOM series outdoor LED solutions are perfect for any billboard or large scale LED wall project. These ultra reliable, high brightness, low power consumption modules also feature an IP65 rating and auto brightness adjustment for the ultimate impact in any climate or weather conditions. Hisense LED modules include cable-less internal construction and rear access for ease of maintenance.

Bright and Vivid Images

10,000 nits high brightness, bright and vivid display, can be seen from a distance

EMC Anti-Interference

Complies with international electronic EMC standards. Anti-electromagnetic interference, more stable operation

Neat and Clean Screen

Clean cable solution, make the screen clear and beautiful.

29kg Lightweight Design

It takes only 2 minutes to splice two cabinets together, saving labor costs dramatically.

45 Beveled Edge Design

45° beveled edge design, easy to complete multiple curved surface splicing, up to-90°~90° curved surface installation.

Front and Rear Access

Supports front maintenance. No need to reserve space for maintenance.

tab

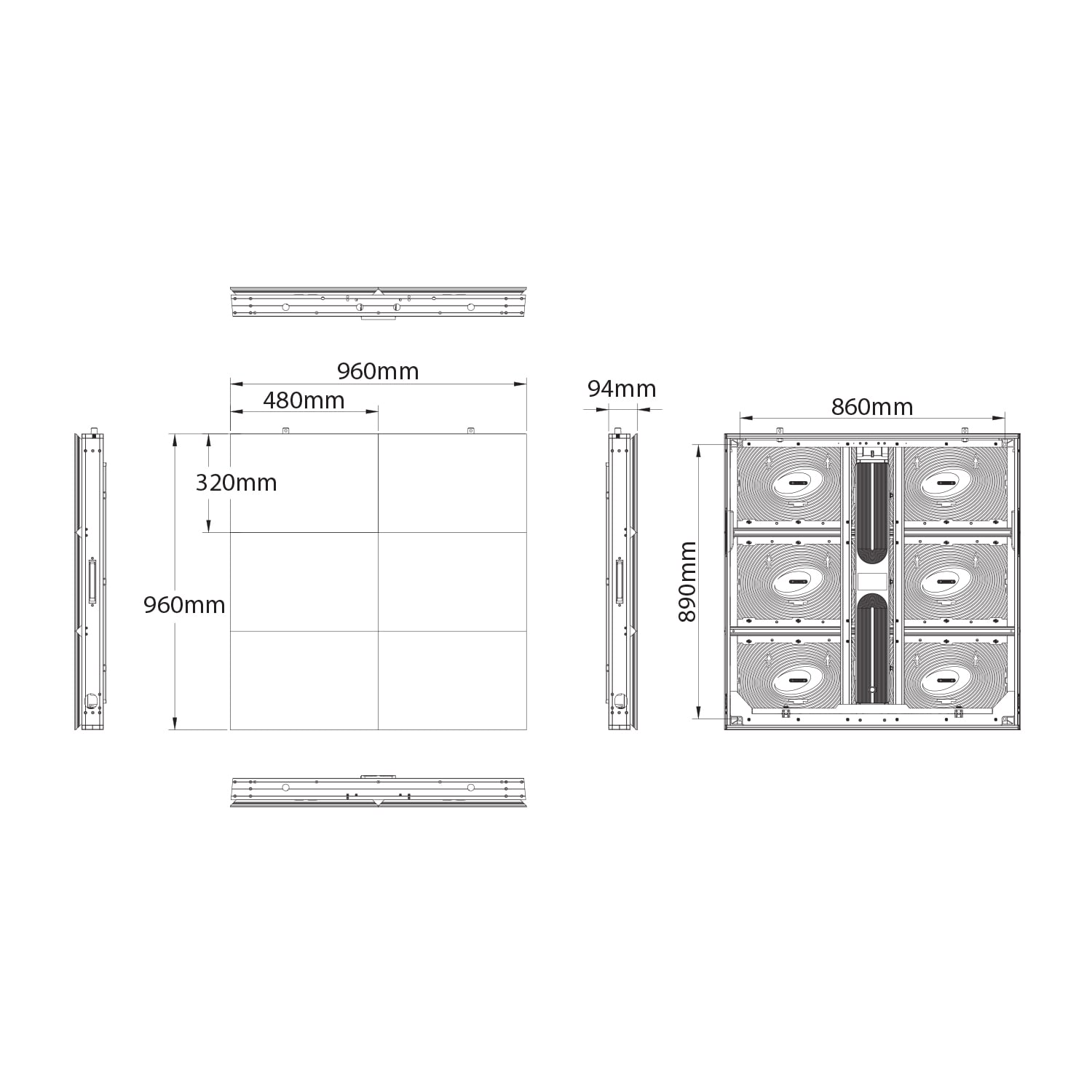

Dimensions


Connectivity


Pixel Pitch: 5 mm
Pixel Configuration: SMD gold wire / SMD1921
Module Resolution (W x H): 96 x 64
Module Dimension (W x H): 480 x 320 mm / 18.9 x 12.6 inch
Cabinet Resolution (W x H): 192 x 192
Cabinet Dimension (W x H x D): 960 x 960 x 106 mm / 37.8 x 37.8 x 4.17inch
No. of Modules per Cabinet (W x H): 2 x 3
Cabinet Weight: 24 kg / 52.91 lbs
Cabinet Materials: Profile Aluminum
Brightness (Typ.): 6,500 nits (5,000~6,500 nits Adjustable)

Contrast Ratio: 4,000 : 1 (According to the current Hisense test environment)
Visual Viewing Angle (H x V): 140° x 120°
Bit Depth: 13 bit (13~16 bit Customisable)
Color Temperature: 6500K ± 500K
Max Power Consumption per Cabinet: 720 W

Avg Power Consumption per Cabinet: 230 W
Max Power Consumption per Unit Area: 780 W/m2
Avg Power Consumption per Unit Area: 250 W/m2
Power Supply: 100~240 V AC

Refresh Rate: 3,840 Hz
Operating Temp / Humidity: -20~50°C / 10~90% RH

Storage Temp / Humidity: -30~60°C / 10~90% RH
IP Rating: Front IP65 & Rear IP54
Lifetime: 100,000 Hrs
Maintenance: Front & Rear Access


Pixel Pitch: 10 mm
Pixel Configuration: SMD gold wire / SMD2727

Module Resolution (W x H): 48 x 32
Module Dimension (W x H): 480 x 320 mm / 18.9 x 12.6 inch
Cabinet Resolution (W x H): 96 x 96
Cabinet Dimension (W x H x D): 960 x 960 x 106 mm / 37.8 x 37.8 x 4.17inch
No. of Modules per Cabinet (W x H): 2 x 3
Cabinet Weight: 24 kg / 52.91 lbs
Cabinet Materials: Profile Aluminum
Brightness (Typ.): 6,500 nits (5,000~6,500 nits Adjustable)
Contrast Ratio: 4,000 : 1 (According to the current Hisense test environment)
Visual Viewing Angle (H x V): 140° x 120°
Bit Depth: 13 bit (13~16 bit Customisable)
Color Temperature: 6500K ± 500K
Max Power Consumption per Cabinet: 720 W
Avg Power Consumption per Cabinet: 230 W
Max Power Consumption per Unit Area 780: W/m2
Avg Power Consumption per Unit Area 250: W/m2
Power Supply: 100~240 V AC

Refresh Rate: 3,840 Hz
Operating Temp / Humidity: -20~50°C / 10~90% RH
Storage Temp / Humidity: -30~60°C / 10~90% RH
IP Rating: Front IP65 & Rear IP54
Lifetime: 100,000 Hrs
Maintenance: Front & Rear Access



Pixel Pitch: 6.67 mm
Pixel Configuration: SMD gold wire / SMD2727

Module Resolution (W x H): 72 x 48
Module Dimension (W x H): 480 x 320 mm / 18.9 x 12.6 inch
Cabinet Resolution (W x H): 144 x 144
Cabinet Dimension (W x H x D): 960 x 960 x 106 mm / 37.8 x 37.8 x 4.17inch
No. of Modules per Cabinet (W x H): 2 x 3
Cabinet Weight :24 kg / 52.91 lbs
Cabinet Materials: Profile Aluminum
Brightness (Typ.): 6,500 nits (5,000~6,500 nits Adjustable)
Contrast Ratio: 4,000 : 1 (According to the current Hisense test environment)
Visual Viewing Angle (H x V): 140° x 120°
Bit Depth: 13 bit (13~16 bit Customisable)
Color Temperature: 6500K ± 500K
Max Power Consumption per Cabinet: 720 W
Avg Power Consumption per Cabinet: 230 W
Max Power Consumption per Unit Area: 780 W/m2
Avg Power Consumption per Unit Area: 250 W/m2
Power Supply: 100~240 V AC

Refresh Rate: 3,840 Hz
Operating Temp / Humidity: -20~50°C / 10~90% RH
Storage Temp / Humidity: -30~60°C / 10~90% RH
IP Rating: Front IP65 & Rear IP54
Lifetime: 100,000 Hrs
Maintenance: Front & Rear Access


Pixel Pitch: 10.66 mm
Pixel Configuration: DIP gold wire / DIP346

Module Resolution (W x H): 45 x 30
Module Dimension (W x H): 480 x 320 mm / 18.9 x 12.6 inch
Cabinet Resolution (W x H): 90 x 90
Cabinet Dimension (W x H x D): 960 x 960 x 106 mm / 37.8 x 37.8 x 4.17inch
No. of Modules per Cabinet (W x H): 2 x 3
Cabinet Weight: 29 kg / 63.93 lbs
Cabinet Materials: Profile Aluminum
Brightness (Typ.): 10,000 nits (8,000~10,000 nits Adjustable)
Contrast Ratio: 3,000 : 1 (According to the current Hisense test environment)
Visual Viewing Angle (H x V): 120° x 60°
Bit Depth: 13 bit (13~16 bit Customisable)
Color Temperature: 6500K ± 500K
Max Power Consumption per Cabinet: 325 W
Avg Power Consumption per Cabinet :97 W
Max Power Consumption per Unit Area: 350 W/m2
Avg Power Consumption per Unit Area: 105 W/m2
Power Supply: 100~240 V AC

Refresh Rate: 3,840 Hz
Operating Temp / Humidity: -20~50°C / 10~90% RH
Storage Temp / Humidity: -30~60°C / 10~90% RH
IP Rating: Front IP65 & Rear IP54
Lifetime: 100,000 Hrs
Maintenance: Front & Rear Access



Pixel Pitch: 8 mm
Pixel Configuration: SMD gold wire / SMD2727

Module Resolution (W x H): 60 x 40
Module Dimension (W x H): 480 x 320 mm / 18.9 x 12.6 inch
Cabinet Resolution (W x H): 120 x 120
Cabinet Dimension (W x H x D): 960 x 960 x 106 mm / 37.8 x 37.8 x 4.17inch
No. of Modules per Cabinet (W x H): 2 x 3
Cabinet Weight: 24 kg / 52.91 lbs
Cabinet Materials: Profile Aluminum
Brightness (Typ.): 6,500 nits (5,000~6,500 nits Adjustable)
Contrast Ratio: 4,000 : 1 (According to the current Hisense test environment)
Visual Viewing Angle (H x V): 140° x 120°
Bit Depth: 13 bit (13~16 bit Customisable)
Color Temperature: 6500K ± 500K
Max Power Consumption per Cabinet :720 W
Avg Power Consumption per Cabinet: 230 W
Max Power Consumption per Unit Area: 780 W/m2
Avg Power Consumption per Unit Area: 250 W/m2
Power Supply: 100~240 V AC

Refresh Rate : 3,840 Hz
Operating Temp / Humidity: -20~50°C / 10~90% RH
Storage Temp / Humidity: -30~60°C / 10~90% RH
IP Rating: Front IP65 & Rear IP54
Lifetime: 100,000 Hrs
Maintenance: Front & Rear Access


Pixel Pitch: 16 mm
Pixel Configuration:  DIP gold wire / DIP346

Module Resolution (W x H): 30 x 20
Module Dimension (W x H): 480 x 320 mm / 18.9 x 12.6 inch
Cabinet Resolution (W x H): 60 x 60
Cabinet Dimension (W x H x D): 960 x 960 x 106 mm / 37.8 x 37.8 x 4.17inch
No. of Modules per Cabinet (W x H): 2 x 3
Cabinet Weight: 29 kg / 63.93 lbs
Cabinet Materials: Profile Aluminum
Brightness (Typ.): 10,000 nits (8,000~10,000 nits Adjustable)
Contrast Ratio: 3,000 : 1 (According to the current Hisense test environment)
Visual Viewing Angle (H x V): 120° x 60°
Bit Depth: 13 bit (13~16 bit Customisable)
Color Temperature: 6500K ± 500K
Max Power Consumption per Cabinet: 325 W
Avg Power Consumption per Cabinet: 97 W
Max Power Consumption per Unit Area: 350 W/m2
Avg Power Consumption per Unit Area: 105 W/m2
Power Supply: 100~240 V AC

Refresh Rate: 1,920 Hz (3,840 Hz Customisable)
Operating Temp / Humidity: -20~50°C / 10~90% RH
Storage Temp / Humidity: -30~60°C / 10~90% RH
IP Rating: Front IP65 & Rear IP54
Lifetime: 100,000 Hrs
Maintenance: Front & Rear Access
