RO Series

RO Series - Outdoor LED Display

RO series outdoor LED solutions are perfect for any billboard or large scale LED wall project. These ultra reliable, high brightness, low power consumption modules also feature an IP65 rating and auto brightness adjustment for the ultimate impact in any climate or weather conditions. Hisense LED modules include cable-less internal construction and rear access for ease of maintenance.

Dimensions

Connectivity

Pixel Pitch: 2.9 mm
Pixel Configuration: SMD copper wire / SMD1415
Module Resolution (W x H): 84 x 168
Module Dimension (W x H): 250 x 500 mm / 9.84 x 19.69 inch
Cabinet Resolution (W x H): 168 x 168 / 168 x 336

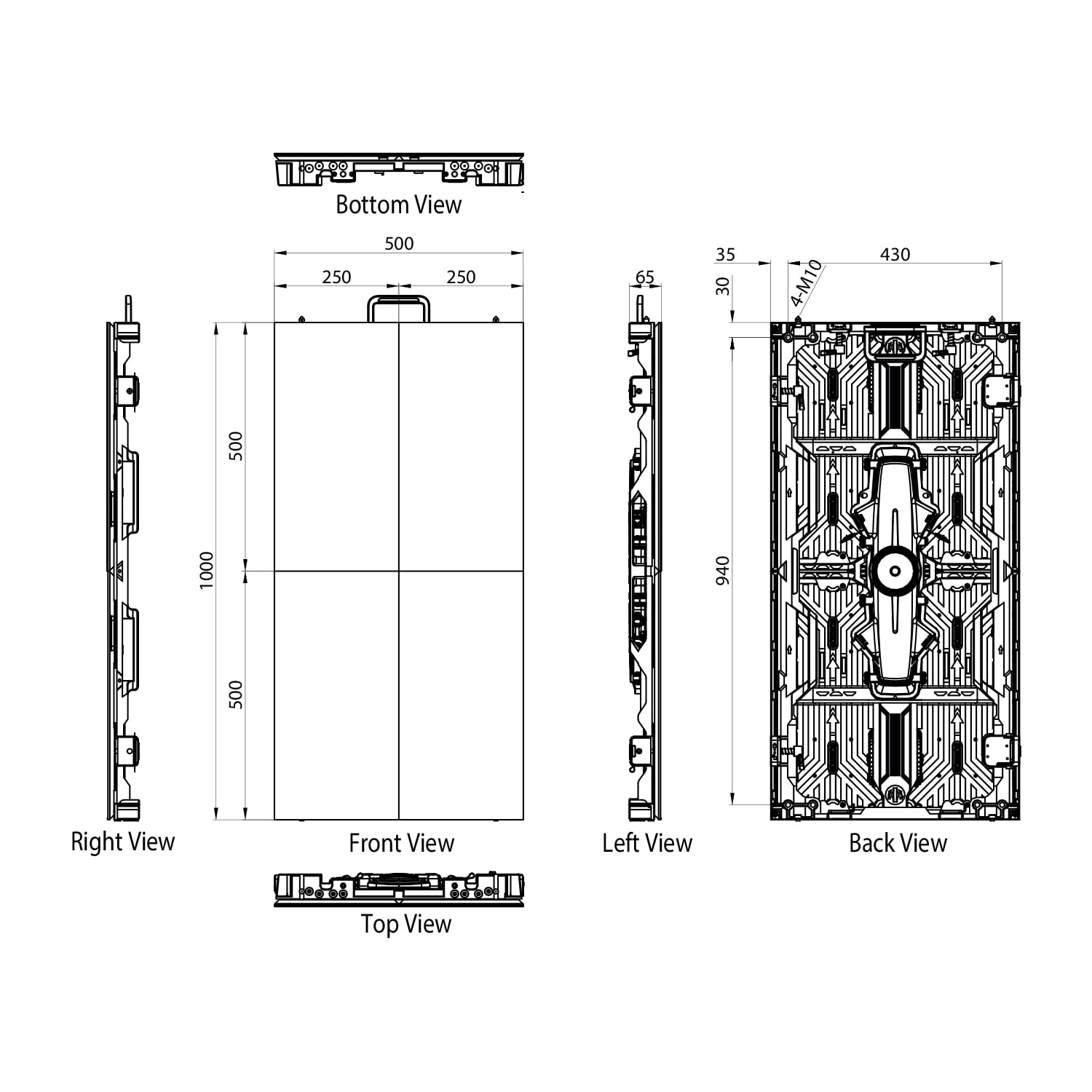

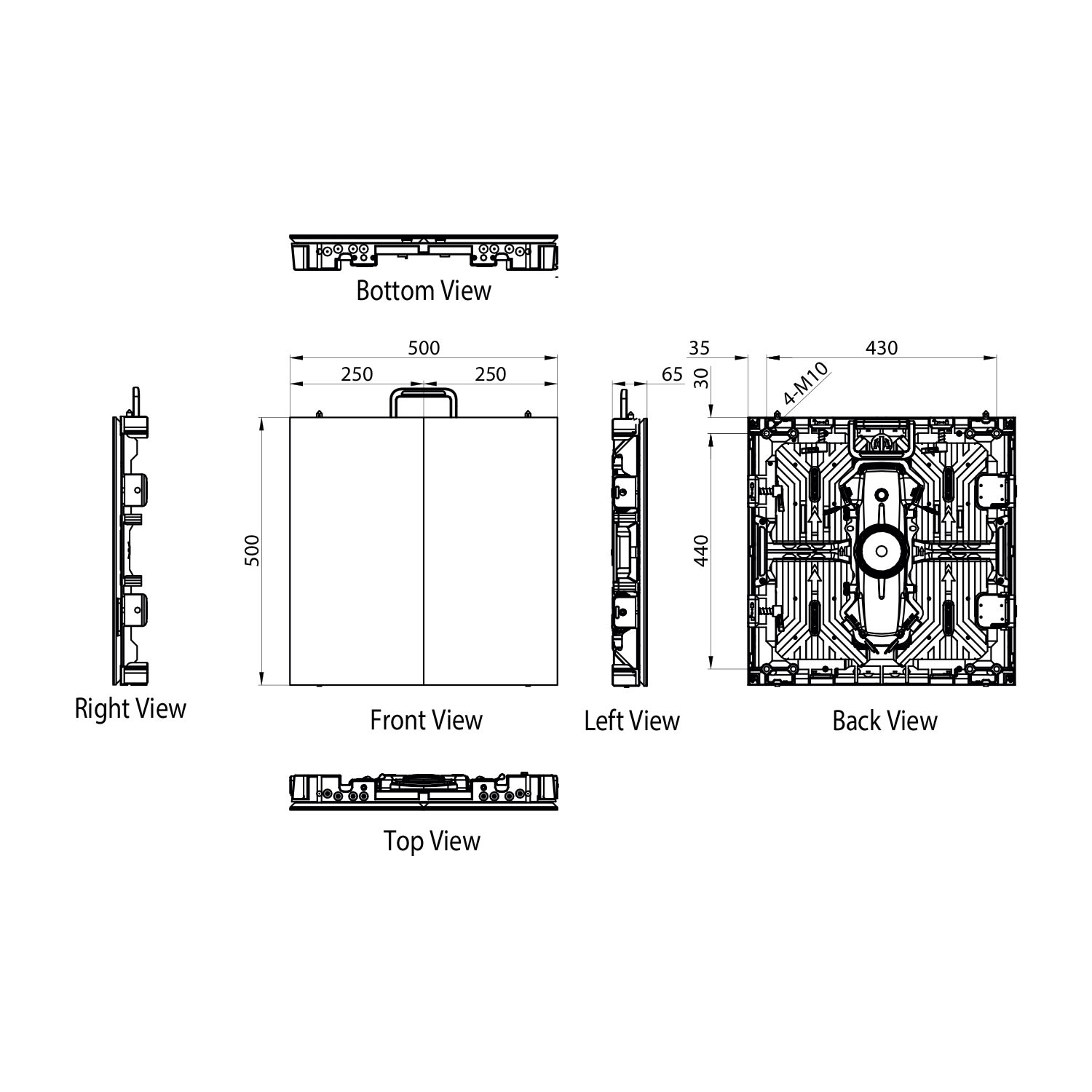

Cabinet Dimension (W x H x D): 500 x 500 x 65 mm / 19.69 x 19.69 x 2.56 inch / 500 x 1,000 x 65 mm / 19.69 x 39.37 x 2.56 inch
No. of Modules per Cabinet (W x H): 2 x 1 / 2 x 2
Cabinet Weight: 7.8 kg / 17.20 Ibs / 13.8 kg / 30.42 Ibs
Cabinet Materials: Die-casting Al
Brightness (Typ.): 4,000 nits (4,000~5,000 nits Customizable)
Contrast Ratio: 4,000 : 1 (According to the current Hisense test environment)
Visual Viewing Angle (H x V): 160° x 140°
Bit Depth: 14~16 bit Customizable
Color Temperature: 6500K ± 500K
Max Power Consumption per Cabinet: 215 W (500 x 500 mm) / 430 W (500 x 1,000 mm)
Avg Power Consumption per Cabinet: 65 (500 x 500 mm) / 29 (500 x 1,000 mm)
Max Power Consumption per Unit Area: 860 W/m2
Avg Power Consumption per Unit Area: 258 W/m2
Power Supply: 100~240 V AC
Refresh Rate :3,840 Hz
Operating Temp / Humidity: -20~50°C / 10~90% RH
Storage Temp / Humidity: -30~60°C / 10~90% RH
IP Rating: Front IP65 & Rear IP54
Lifetime: 100,000 Hrs
Maintenance: Front & Rear Access

Pixel Pitch: 3.9 mm
Pixel Configuration: SMD copper wire / SMD1921
Module Resolution (W x H): 64 x 128
Module Dimension (W x H): 250 x 500 mm / 9.84 x 19.69 inch
Cabinet Resolution (W x H): 128 x 128 / 128 x 256
Cabinet Dimension (W x H x D): 500 x 500 x 65 mm / 19.69 x 19.69 x 2.56 inch / 500 x 1,000 x 65 mm / 19.69 x 39.37 x 2.56 inch
No. of Modules per Cabinet (W x H): 2 x 1 / 2 x 2
Cabinet Weight: 7.8 kg / 17.20 Ibs / 13.8 kg / 30.42 Ibs
Cabinet Materials: Die-casting Al
Brightness (Typ.): 4,500 nits (4,000~6,000 nits Customisable)
Contrast Ratio: 4,000 : 1 (According to the current Hisense test environment)
Visual Viewing Angle (H x V): 160° x 140°
Bit Depth: 14~16 bit Customisable
Color Temperature: 6500K ± 500K
Max Power Consumption per Cabinet: 195 W (500 x 500 mm) / 390 W (500 x 1,000 mm)
Avg Power Consumption per Cabinet: 58 (500 x 500 mm) / 115 (500 x 1,000 mm)
Max Power Consumption per Unit Area: 780 W/m2
Avg Power Consumption per Unit Area: 230 W/m2
Power Supply: 100~240 V AC
Refresh Rate: 3,840 Hz
Operating Temp / Humidity: -20~50°C / 10~90% RH
Storage Temp / Humidity: -30~60°C / 10~90% RH
IP Rating: Front IP65 & Rear IP54
Lifetime: 100,000 Hrs
Maintenance: Front & Rear Access

Pixel Pitch: 4.8 mm
Pixel Configuration: SMD copper wire / SMD1921
Module Resolution (W x H): 52 x 104
Module Dimension (W x H): 250 x 500 mm / 9.84 x 19.69 inch
Cabinet Resolution (W x H): 104 x 104 / 104 x 209
Cabinet Dimension (W x H x D): 500 x 500 x 65 mm / 19.69 x 19.69 x 2.56 inch / 500 x 1,000 x 65 mm / 19.69 x 39.37 x 2.56 inch
No. of Modules per Cabinet (W x H): 2 x 1 / 2 x 2
Cabinet Weight: 7.8 kg / 17.20 Ibs / 13.8 kg / 30.42 Ibs
Cabinet Materials: Die-casting Al
Brightness (Typ.): 4,500 nits (4,000~6,000 nits Customizable)
Contrast Ratio: 4,000 : 1 (According to the current Hisense test environment)
Visual Viewing Angle (H x V): 160° x 140°
Bit Depth: 14~16 bit Customizable
Color Temperature: 6500K ± 500K
Max Power Consumption per Cabinet: 195 W (500 x 500 mm) / 390 W (500 x 1,000 mm)
Avg Power Consumption per Cabinet: 58 (500 x 500 mm) / 115 (500 x 1,000 mm)
Max Power Consumption per Unit Area: 780 W/m2
Avg Power Consumption per Unit Area: 230 W/m2
Power Supply: 100~240 V AC
Refresh Rate: 3,840 Hz
Operating Temp / Humidity: -20~50°C / 10~90% RH
Storage Temp / Humidity: -30~60°C / 10~90% RH
IP Rating: Front IP65 & Rear IP54
Lifetime: 100,000 Hrs
Maintenance: Front & Rear Access
