86WR60AE

86” Advanced Interactive Display


Hisense Interactive Display solutions deliver unrivalled performance and market leading value. Combining the power of a digital display, tablet, electronic whiteboard and video conference device, Hisense delivers the ultimate all-in-one display solution. Superior processors and the latest touch technology provide best-in-class user experiences while seamless wireless integration makes collaboration both simple and engaging.

4K Ultra HD

The 4K Ultra HD picture quality* ensures perfect colour and rich details in all possible broadcasting surroundings, ranging from shops, to restaurants and office buildings.

Screen transmission

The WR series interactive digital boards can wirelessly connect with two or more auxiliary screen devices. Near-Field Communication (NFC) touch transmission and A&C screen transmission simplify this process.

Collaborative interaction

The touchscreen recognizes up to 20 touches at once which is ideal for simultaneous use by meeting participants.

Intuitive controls

With your fingers you will, among other things, be able to switch between tasks, annotate content from any source, make handwritten notes, zoom in / out and undo changes.

Powerful Architecture

Expect unstoppable performance by an octa-core processor and 3+32GB large memory.

Tempered Glass

Hisense’s WR series have heat treated tempered glass preventing any damage to the touch panels.

Anti-Glare

Optical technology diffuses mirror-like reflections and bright lights to help keep what’s on your screen clear and visible.

Comfortable viewing

Each of our Interactive Digital Boards has a filter to effectively reduce blue light so your eyes remain comfortable even when using the screen for longer periods of time.

Smooth Touch

The built-in whiteboard app allows users to smoothly write, draw and erase information on-screen through touch, either by hand or with a stylus pen.

Smooth and speedy processing

The open Android 8.0 platform not only guarantees smooth processing, but also supports the installation of Android-based application.

tab

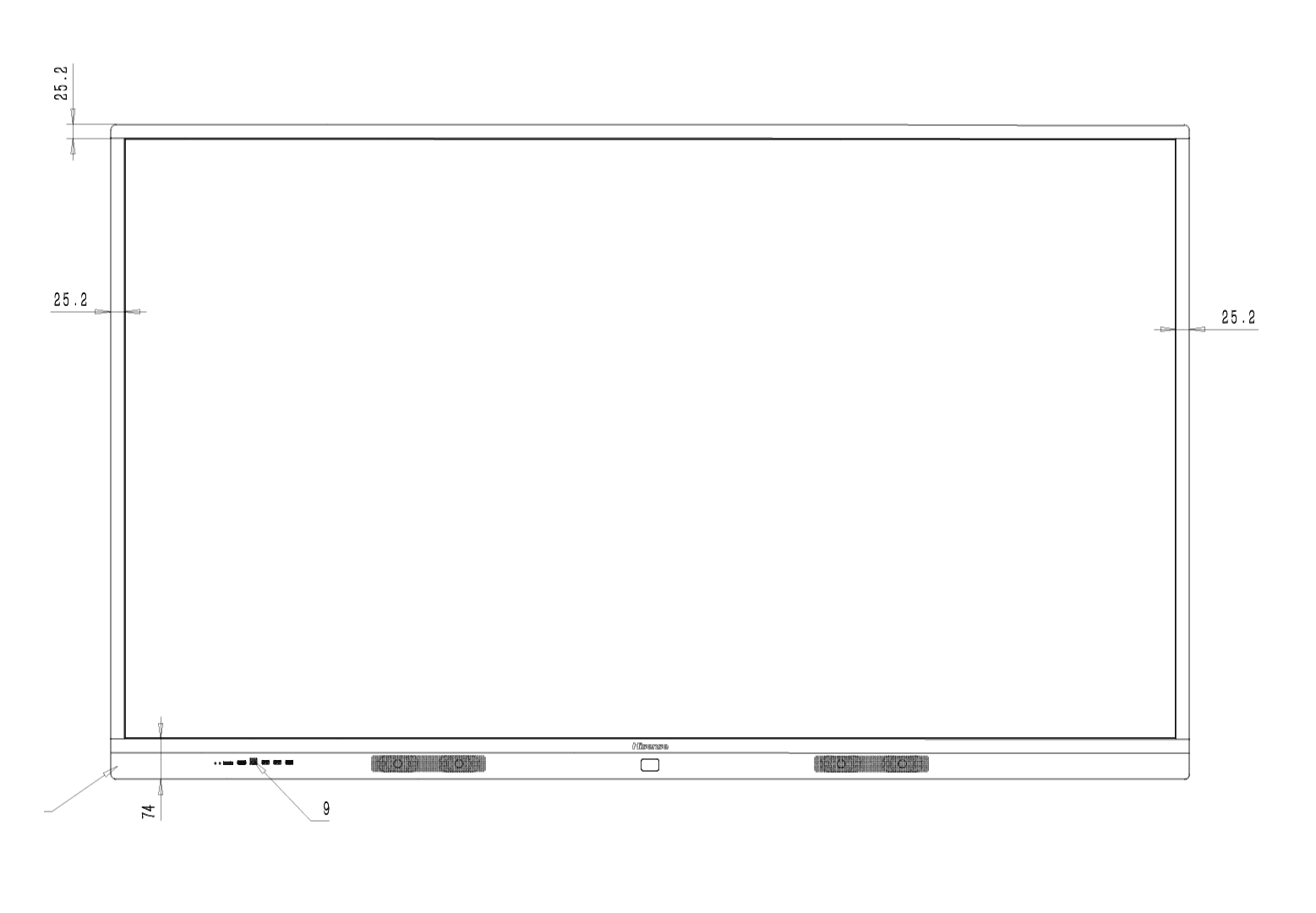

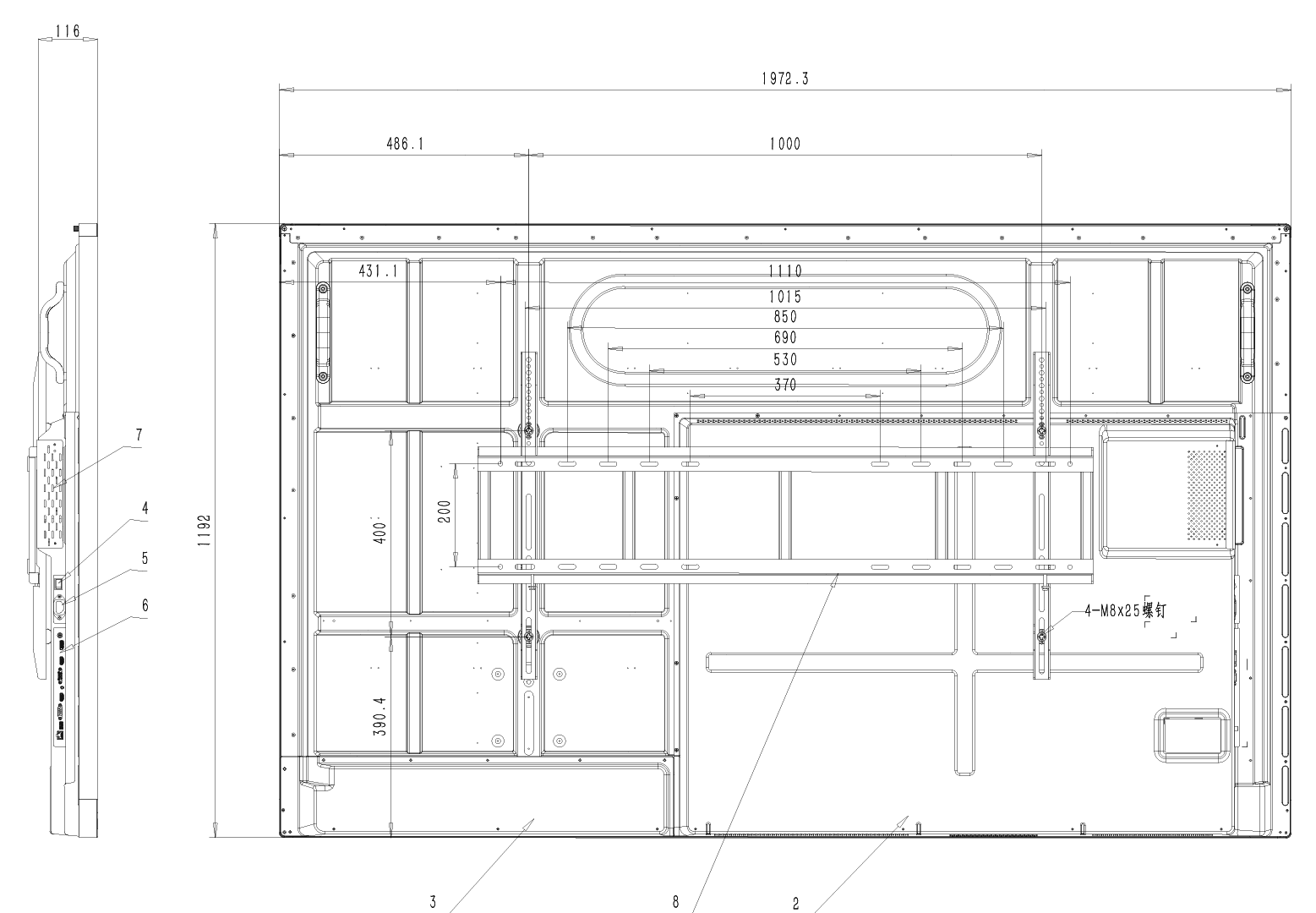

Dimensions


Connectivity

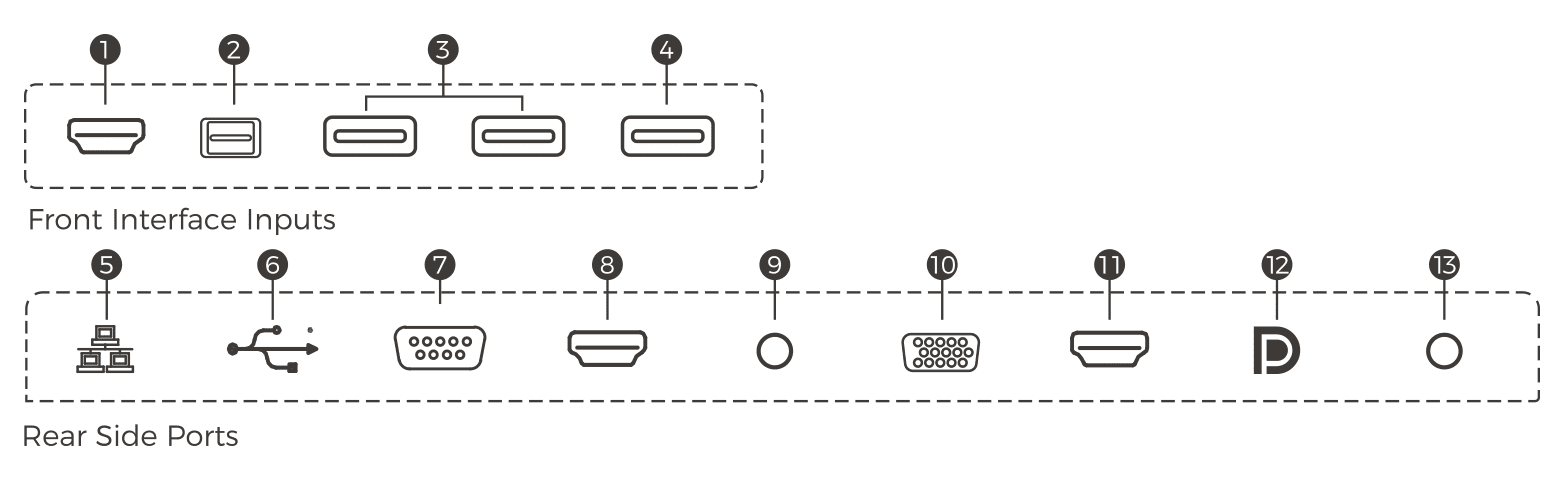

Connectivity

1. HDMI In
2. Touch
3. USB
4. USB 3.0
5. Ethernet
6. USB
7. RS 232
8. HDMI Out
9. Audio In
10. VGA
11. HDMI In
12. DP
13. S/PDIF Out

MEA

Panel
Backlight: D-LED
Size: 86’
Resolution: 3840 x 2160
Refresh rate: 60HZ
Brightness: 350cd/m²(typ.)
Contrast(typ): 1200:1 (typ)
Viewing angle: 178°(H) / 178°(V)
MTBF: 30000Hrs(min)
Lifetime: 50,000 hrs

Control Method
Remote: IR Remote

Speaker
Built in speaker: 2x15W/8Ω

Power
Input: AC 100V-240V@50-60HZ
Power Consumption: 460W
Standby Consumption: <0.5W

Environment
Operation Temperaturer: 0 - 40°
Operation Humidity: 20% - 80%

Connectivity
WIFI: 2.4G/5G
LAN: 10/100Mbps RJ45*1
USB: USB 2.0*1 USB3.0*1

Operating System
OS: Android 8.0
RAM: 3GB
ROM: 32GB

Physical
Bezel Color: Black
Set Dimension(WxHxD): 1972 × 1192 × 116mm / 77.6 x 46.9 x 4.6inch
Housing Color: Black
Net Weight: 75kg / 165.34lbs
Packing Dimension(WxHxD): 2171 × 1381 × 341mm / 85.5 x 54.5 x 13.4inch
Packed Weight: 100kg / 220.5lbs
VESA: 1000 x 400mm

Certification
Standard Certification: CB/CE/ICASA/ERP

What’s in the box
User manual
Remote controller inc batteries
Power Cable
Stylus Pen x 2
Wireless Cast x 1
Wall Mount Bracket x 1

Available Regions
EU
SA
