43DM66D

43” 4K UHD Digital Signage Display - 24/7 Operation


Hisense Digital Signage is designed to serve multiple business applications: public spaces, transportation systems, museums, stadiums, retail stores, hotels, restaurants and corporate buildings. With DM series, it delivers powerful engagement from any devices, boost business with real-time updates, data-driven insights and visually appealing content, manage and control devices at anytime from anywhere, and simplify the cable management by conecting a series of displays to a single video output.

Smart Power

A built-in ambient light sensor automatically adjusts the screen brightness according to current light conditions. This display is Energy Star certified to help you protect the environment and save costs.

Wireless Screen Sharing

Everthing you need for screen sharing solutions. ScreenShare is a in house built-in screen sharing application that enables the screen sharing wirelessly and seemlessly from anywhere and from any devices.

Mobile Device Management

VisionInfo is a cloud-based device managemet software that offers end-to-end device management and control through all devices. It is a powerful, effective and easy to use tool to control your devices at anytime from anywhere.

Conformal Coating

Electronic components are completely protected from the environmental factors like moisture, dust, salt, chemicals, temperature changes and mechanical abrasion.

Clean Cable Solution

The integrated cable holder hides cables and keeps the back of the display tidy and uncluttered. This reduces visual distractions that can get in the way of your viewing experience.

Anti-glare Coating

All  displays offer higher haze panels that help reduce reflections without adversley affecting the image quality. Anti-glare coatings can also improve the perceived contrast of the display.

Narrow Bezel

With a narrow bezel and symmetrical design, the display can be easily integrated into any environment. All terminals face outwards, ensuring the display hangs flush against the wall which saves space and facilitates installation.

Android 11

Android 11 works to keep your data safe and secure. With Android 11, you have more control over what information apps can and can’t access. Devices that work better together, enhance your messaging, audio and multitasking experiences.

tab

Dimensions


Connectivity

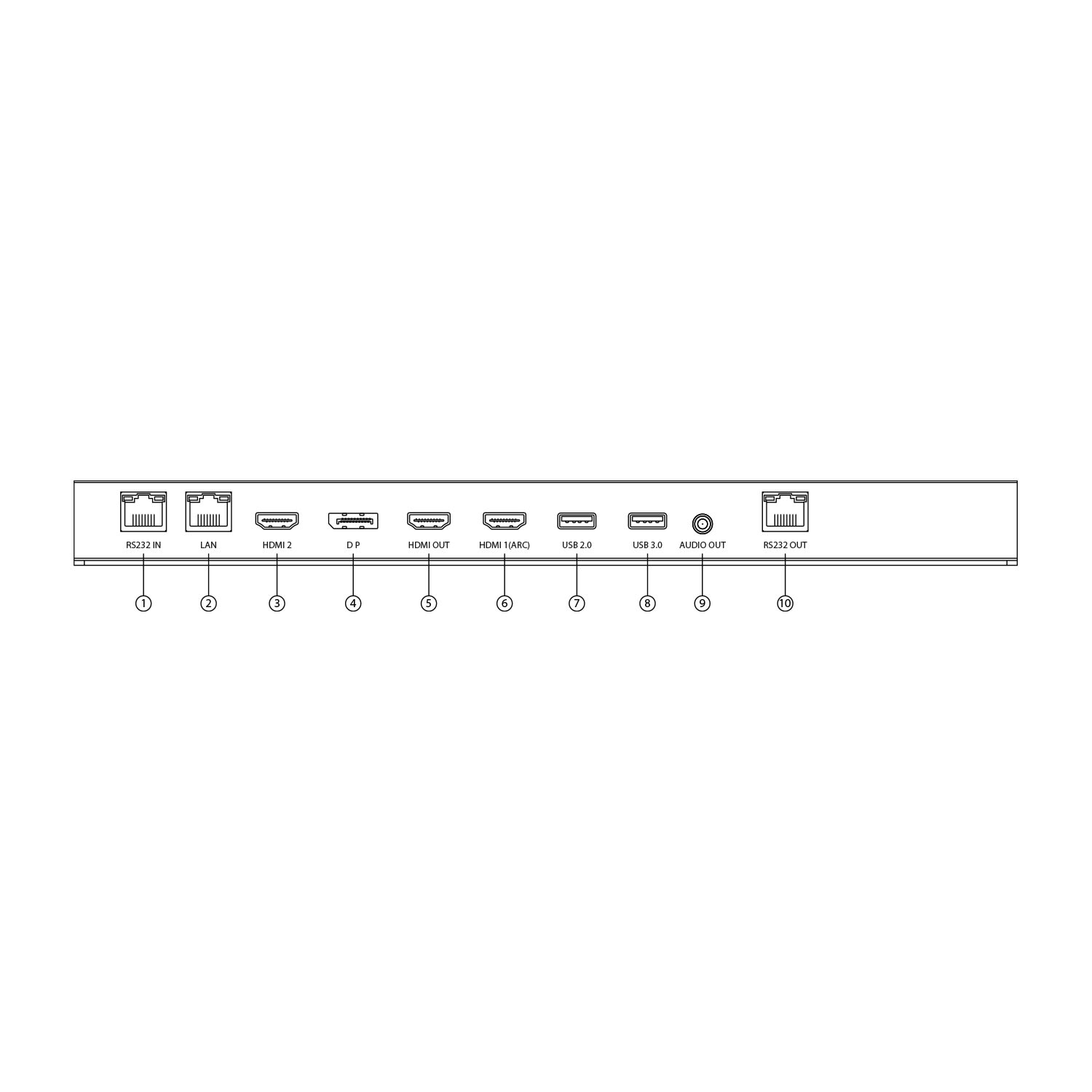

Connectivity

1. RS232 In
2. LAN
3. HDMI 2
4. Display Port
5. HDMI Out
6. HDMI 1 (ARC)
7. USB 2.0
8. USB 3.0
9 Audio Out
10. RS232 Out

Panel
Backlight: DLED
Panel Type: ADS
Size: 43’’
Resolution: 3840 x 2160
Refresh rate: 60HZ
Color Depth: 1.07G (8 Bits+FRC)
Brightness: 500 nits (typ)
Contrast(typ): 1200:1 (typ)
Response Time(typ): 8ms
Viewing Angle: 178° / 178°
Color Gamut(typ): 72% NTSC
Haze: 25%
Orientation: Landscape & Portrait
Lifetime: up to 50,000hrs
Operation Hours: 7Day x 24Hour

Speaker
Built in speaker: 10W x 2

Environment
Operation Temperature: 0 - 40°C
Operation Humidity: 10% - 80% Non-Condensing

Connectivity
WI-FI: 2.4/5.0GHz dual,802.11a/b/g/n/ac
Bluetooth: BT5.1

Input:
HDMI(2.0) x 2
DP(1.2a) x 1
USB2.0(A) x 1
USB3.0(A) x 1
RS232(RJ45) x 1
LAN(RJ45) x 1

Output:
HDMI x 1
Audio(3.5mm) x 1
RS232(RJ45) x 1

Operating System
OS: Android 11

Physical
Bezel Color: Black
Set Dimension(W×H×D): 970.4 x 557.5 x 62.8mm / 38.2 x 21.9 x 2.5inch
Bezel width(T/L/R/B): 10.1mm(T/L/R), 10.3mm(B)
Net Weight: 8.5kg / 18.7lbs
Packing Dimension(W×H×D): 1092 x 663 x 145mm / 43 x 26.1 x 5.7inch
Gross Weight: 12.5kg / 27.56lbs
VESA Mount: 300mm x 300mm

Certification
Standard Certification: CCC/CB/CE/FCC/cTUVus/UKCA/CEC/ERP
Safety: 62368-1
Environment: Energy Star 8.0
IP Rating: IP5X

What’s in the box
Quick Setup Guide
Warranty Card
Power Cord
Remote Controller
Batteries
RS232(in) Gender
