55L35B5U

55” LCD Video Wall Display


Create a powerful visual experience with pixel perfect clarity with our latest video wall solutions. With an extra narrow bezel, Hisense video walls seamlessly recreate your desired content across almost any configuration style.

Round-the-clock operation

Designed with dual-core System on Chip (SoC) technology, Hisense displays can be used as reliable digital signage for both offline and cloud based content 24 hours a day, 7 days a week. You are completely free to choose your content management system to help display your advertising. If necessary the internal memory will allow you to upload media into the display for instant broadcast without the need for external hardware or software.

178° Wide viewing angle

The extra wide 178° viewing angle is a perfect fit for shoppers, employees or visitors that will view displays from diverse angles while passing by.

500 nits

With 500 nits maximum brightness the display panels can deliver amazingly vivid imagery anywhere during daytime and nighttime conditions.

Anti-Glare

Optical technology diffuses mirror-like reflections and bright lights to help keep what’s on your screen clear and visible.

Ultra-narrow bezel

An ultra-narrow 3.5mm bezel-to-bezel width creates a seamless and more perfect picture.

1200:1 Ultra high contrast

1200:1 ultra high contrast display, providing eye-catching vivid visuals any time of the day or night, with outstanding colour performance.

tab

Dimensions


Connectivity

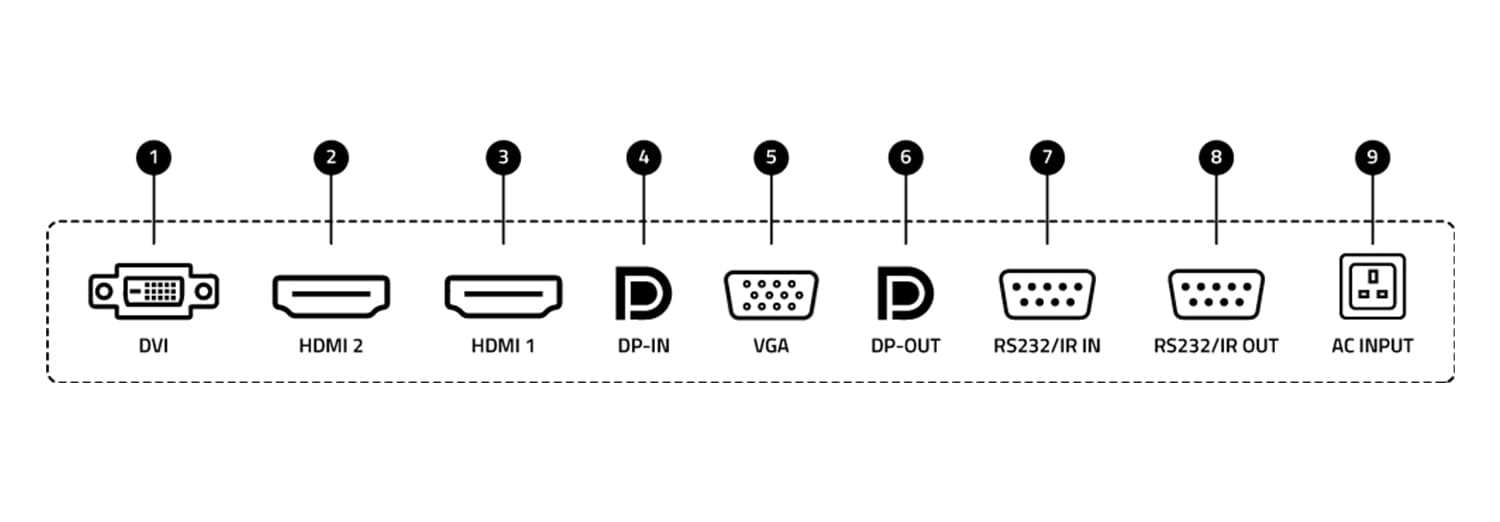

Connectivity

1 - DVI
2 - HDMI 2
3-  HDMI 1
4 - DP-IN
5 - VGA
6 -  DP-OUT
7 - RS232(RJ45)/IR IN
8 - RS232(RJ45)/IR OUT
9 - AC INPUT

Display
Panel size: 55"
Brightness: 500nits
Resolution: 1920 x 1080
Contrast Ratio: 1200:1(typ.)
Back-Light: D-LED
Color: 16.7M(8bit)
Viewing Angle: 178°/178°
Refresh Ratio: 8 ms
Surface Treatment: The surface of the LCD has an Anti-glare coating to minimize reflection and a coating to Reduce scratching.Haze 25%,3H,(Front Polarizer)
Usage time: 24x7
MTBF: 30000hours
Orientation: Landscape & Portrait

Physical
Splice Pitch: 3.5mm
VESA: 400x400mm, M6
Set Dimension: 1213.6 x 684.3 x 94.4mm
Packed Dimension: 1360 x 240 x 840mm
Net Weight: 28.1kg
Packed Weight: 38kg

Connectivity
Interface: x2 HDMI (in), x2 DP (in & out), x1 DVI (in), x1 VGA (in), x2 RS232 (in & out)

Speaker
Built-in Speaker: No

Power
Voltage: 100-240V 50/60Hz
Power Consumption: 240W
Software
OS: Yes
Language: Chinese/English

Environment
Operation Temperature: 10-40°
Operation Humidity: 10%-80%RH

Media Player compatibility
OPS Type Compatible: No

Accessories
Basic: Remote Controller, power cord, Ethernet cable, User Manual, RS232 connector,Infrared reception
Optional: Optional Wall Mount, Control Software, Process System
