55SDT25P_X1

55" HB Drive Thru Display X1


The Hisense Drive thru display is used by quick service restaurants globally to provides an professional, easy-to-use solution maximising advertising from any drive thru lane. Our 2500nit high-bright screen provides clear content, ensuring maximum engagement in any lighting conditions. The IP55 enclosure protects components in any conditions all year round.

Round-the-clock operation

Designed with dual-core System on Chip (SoC) technology, Hisense displays can be used as reliable digital signage for both offline and cloud based content 24 hours a day, 7 days a week. You are completely free to choose your content management system to help display your advertising. If necessary the internal memory will allow you to upload media into the display for instant broadcast without the need for external hardware or software.

2500 nits

LED display could reveal more details, including layers and colors, than traditional displays do.

Smart Brightness Sensor

Self-heat dissipation design, energy saving and noise reduction improve the service life.

Safety Lock and Invisible Screws and Hinges

With Professional three-point anti-theft lock design, internal locking of bolts, no exposed high-strength steel doors, Hisense Outdoor Display can prevent criminals from picking locks and doing malicious damage.

Easy Maintenance

Telecom-class routing design ensures the cabinet sealing performance. Front door access with lock for both wall mount monitor and kiosk models for easy operation and maintenance.

Efficient Heat Dissapation Management

Professional software for thermal simulation for cooling system design, which cools down the heat generated from every part of the product with high performance, preventing outside air from entering.

IP55 Rated All Weather Displays

The IP55 rating provide full protection against dust and water projection. Built in intelligent heating and cooling, together with a smart automatic air circulation system. Anti vandal glass for protection from extreme environmental conditions and impacts to the display.

tab

Dimensions


Connectivity


General
Screen Size: 1x1 55"
Screen Active Area(mm): 1210 x 680mm
Resolution: FHD(1920x1080)
Aspect Ratio: 16:9
Brightness(nit): 2500nits
Constrast Ratio: 1200:1
Viewing Anagle(H/V): 178°/178°
Backlight Life Cycle: 50,000 Hrs
Operation Hours: 24/7
Response Time: 8ms
Screen Orientation: Portrait
Touch Screen: Optional

System
OS: Android 9.0

Connectivity
Input: x1 HDMI IN, x2 USB 2.0, x1 LAN, x1 SD Cart Slot, x1 AV IN
Output: x1 AV OUT

Network Connection
Wifi or LAN: Yes
3G/4G connection: Optional

Thermal management
Build in fan: Airflow
Overheating Protection: Yes



Operation
Working Environment: Full outdoor
Auto Brightness Control: Light sensor
Operation Temperature (ambient temp.): -20℃ to 45℃
Operation Humidity: 5% to 90%

Physical
IP Rating: IP55
Glass: 6.8 mm (AR, Tempered & Laminated Glass)
Metal: Galvanized steel with powder coated
Standard Color: Black

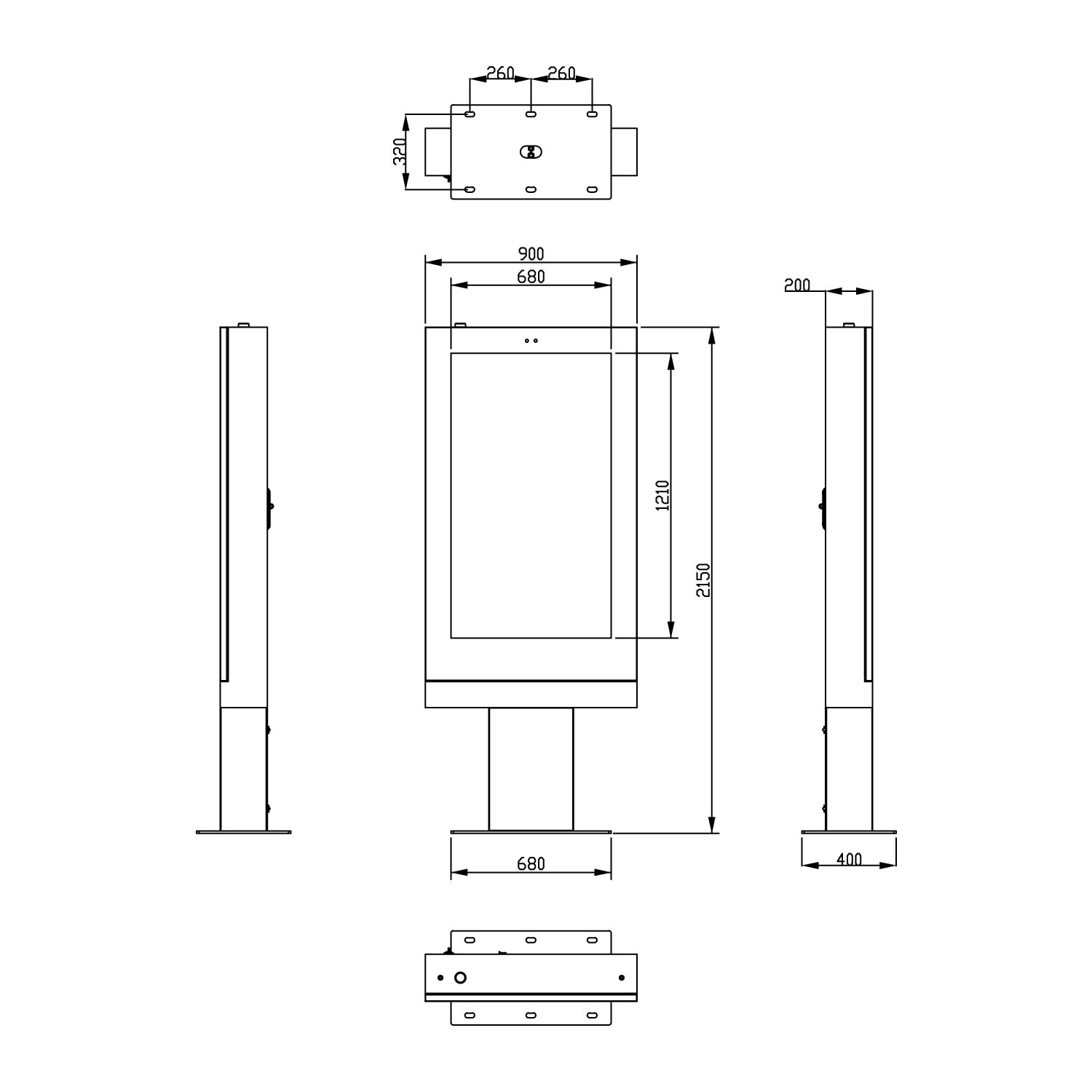

Dimensions: 2150(H) x 900(W) x 200(D) mm
Net Weight: Apprx. 160kg
Packing Dimensions: 2300(H) x 1060(W) x 450(D) mm

Power
Power Supply: AC 110 /220V,50/60Hz
Power Type: Built-In Power
Power Consumption: 380W(Max.)

Available Regions
EU
APAC
SA
