S02BDS7AA21E

OPS On Board Computer (Intel CoreTM i7/16G RAM/256G SSD)


Hisense Interactive displays comes with an OPS slot (Open Pluggable Specification) giving you the ability to integrate a computer in to the display. The integrated OPS computer utilises powerful Intel processors to bring you all the power of a desktop computer within the interactive display maximising its versatility and compatibility.

MSATA System Disk

Support quick start of MSATA system disk and one click restore to enhance user experience.

HD Graphics

The standard Intel HD graphics 630 integrated graphics card supports h.265 and 4K.

10th Generation CPU

10th Generation Intel desktop CoreTM CPU.

Support Bluetooth 4.2

Version 4.2 makes Bluetooth smarter, faster and the ideal wireless technology supporting up to 1Mbps.

Update System to Win10 Iot Enterprise LTSC or Win 11 Pro

Windows Enterprise is a streamlined operating system that is designed for use on Internet of Things (IoT) devices.

Support WiFi 5 and Wired Network

Wifi 5 or IEEE 802.11ac is the fifth generation of wireless networking standards in the IEEE 802.11 set of standards which provides high throughput in a wireless local area network (LAN)

tab

Dimensions


Connectivity


OPS
CPU Intel CoreTMI i7 10700 CPU
RAM: 16GB
SSD: 256GB
System: Win10 Iot Enterprise LTSC or Win 11 Pro

Power
Power Supply Mode: Internal Power Supply Module
Power Requirements: 12V-19V DC
Max Power: 90W
Standby Power: 0.5W

Motherboard Interface
USB3.0 x 2
USB 2.0 x 2
HDMI Out x 1
DP Out x 1
Mic In x 1

Physical
Colour: Black

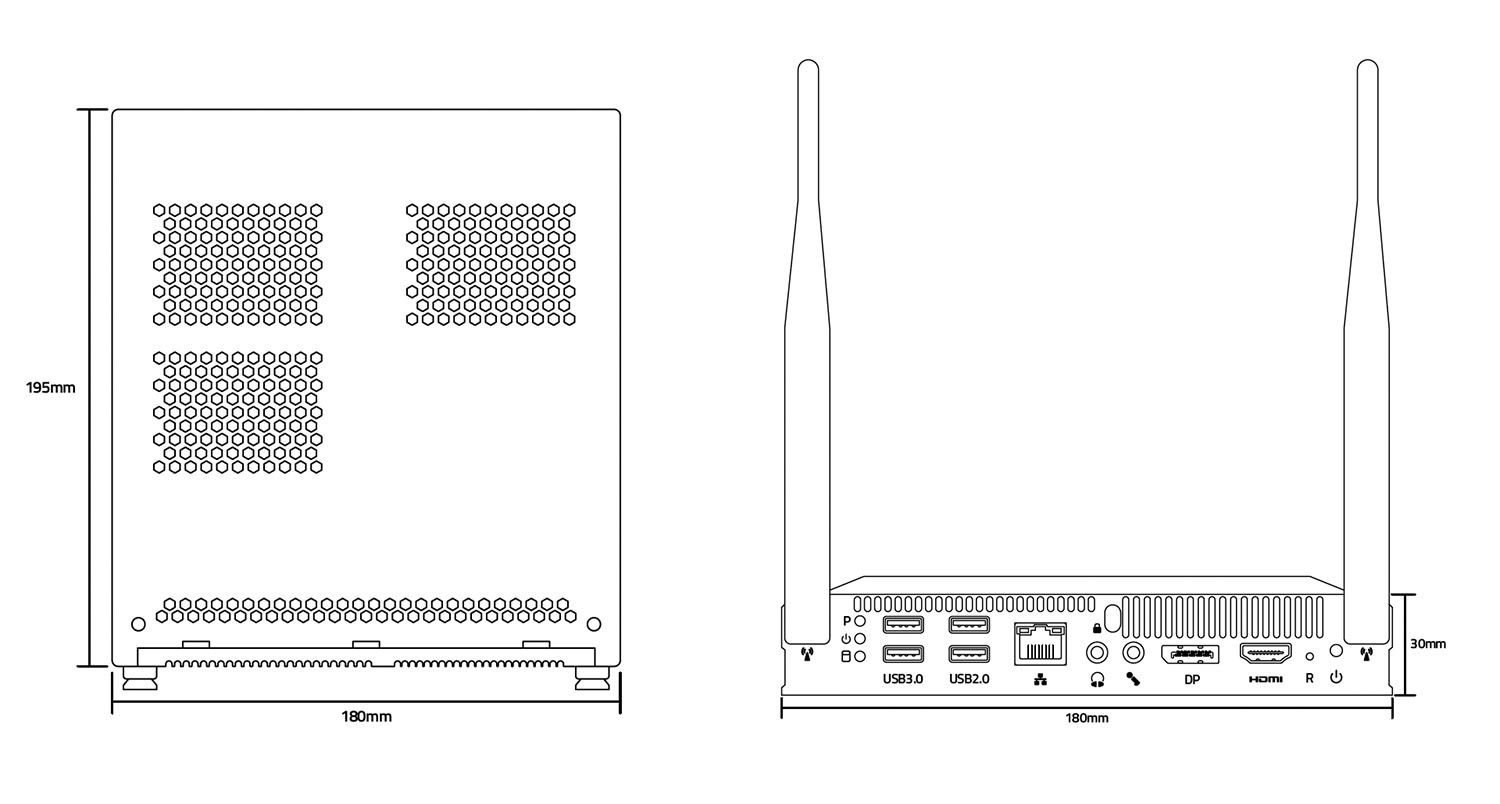

Dimension L*W*H: 180*195*30(mm)
Net Weight: 1.4kg

Environmental Conditions
Operation Temperature: 0 - 40
Operation Humidity: 10%-90%
Storage Temperature: -20 - 60
Storage Humidity: 10% - 90%
