Hisense Logo
HOA Series

HOA Series - Outdoor LED Display

HOA series outdoor LED solutions are perfect for any billboard or large scale LED wall project. These ultra reliable, high brightness, low power consumption modules also feature an IP65 rating and auto brightness adjustment for the ultimate impact in any climate or weather conditions. Hisense LED modules include cable-less internal construction and rear access for ease of maintenance.

Model

HOA

High refresh rate

With uniform color scale and brightness, dynamic performance of LED display could restore the true scenes without any ripples.

Effortless set-up and maintenance

Easy access allows for effortless set up, operation and maintenance.

Ultra high brightness

With 5,500 nits maximum brightness the display panels can deliver amazingly vivid imagery anywhere during daytime and nighttime conditions.

120° High viewing angle

The extra wide 120° viewing angle is a perfect fit for large groups of people that will view the displays from diverse angles while passing by.

Ultra high contrast ratio

LED display could reveal more details, including layers and colors, than traditional displays do.

Long Lifespan

This series series boasts an incredibly long lifespan of upto 100000hrs.

Clear and consistent picture

LED display providing a clear and consistent picture throughout it’s lifepspan.

Durable in Outdoor Environments

The fully waterproof module ensures the TES LED display series with ongoing performance when exposed to high temperature, high-humidity and a variety of natural and unintentional scenarios.

tab

Dimensions

Connectivity

EOL

Pixel Pitch: 2.5
Hisense Type: HOA2.5-TAM9696R
LED Type: SMD1415
Module Resolution: 128 x 64
Module Size (W x H): 320 x 160mm / 12.6 x 6.3inch

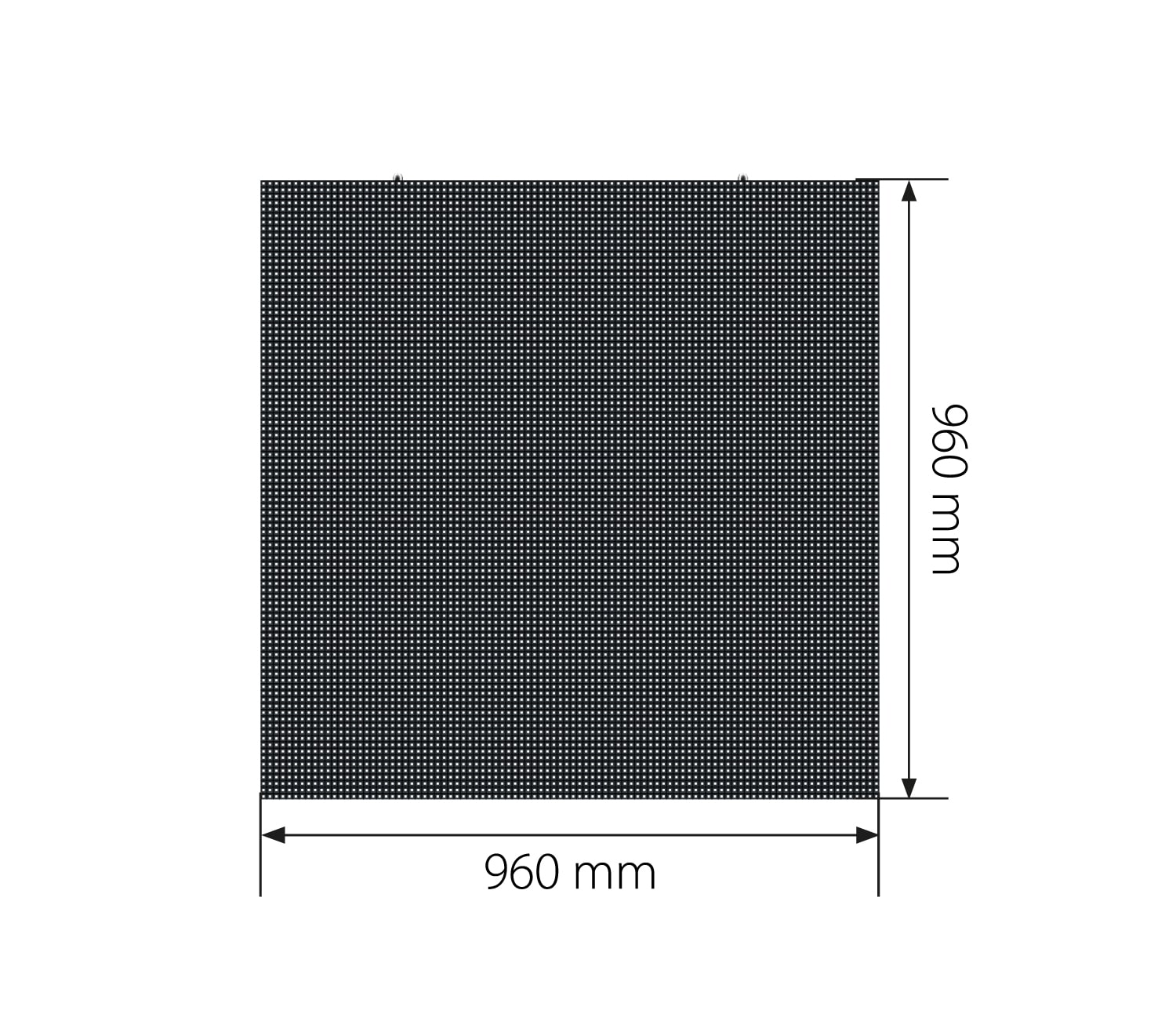

Cabinet Dimension (W x H): 960 x 960mm / 37.8 x 37.8inch
Cabinet Resolution: 384 × 384
Cabinet Weight: ≤33kg / ≤72.77lbs
Thickness: 135mm / 5.31inch
Brightness (Nits): 4500 Nits
Contrast Ratio: ≥5000:1
Max Power Consumption (W/sqm): ≤800
Avg Power Consumption (W/sqm): ≤260
IP Rating: Front:IP65/Rear:IP54
Viewing Angle (H/V): ≥140 degrees
Refresh Rate (Hz): >1920~3840


Pixel Pitch: 5
Hisense Type: HOA5.0-TAM9696R
LED Type: SMD1921
Module Resolution: 64 x 32
Module Size (W x H): 320 x 160mm / 12.63 x 6.3inch
Cabinet Dimension (W x H): 960 x 960mm / 37.8 x 37.8inch
Cabinet Resolution: 384 x 384
Cabinet Weight: ≤33kg / ≤72.77lbs
Thickness: 135mm / 5.31inch
Brightness (Nits): 4500 Nits
Contrast Ratio: ≥5000:1
IP Rating: Front:IP65/Rear:IP54
Max Power Consumption (W/sqm): ≤800
Avg Power Consumption (W/sqm): ≤260
Viewing Angle (H/V): ≥140 degrees
Refresh Rate (Hz): >1920~3840


Pixel Pitch: 10
Hisense Type: HOA10.0-TAM9696R
LED Type: SMD2727
Module Resolution: 32 x 16
Module Size (W x H): 320 x 160 / 12.63 x 6.3inch
Cabinet Dimension (W x H): 960 x 960mm / 37.8 x 37.8inch
Cabinet Resolution: 96 x 96
Cabinet Weight: ≤33kg / ≤72.77lbs
Thickness: 135mm / 5.31inch
Brightness (Nits): 5500 Nits
Contrast Ratio: ≥5000:1
IP Rating: Front:IP65/Rear:IP54
Max Power Consumption (W/sqm): ≤800
Avg Power Consumption (W/sqm): ≤260
Viewing Angle (H/V): ≥120 degrees
Refresh Rate (Hz): >1920~3840

Pixel Pitch: 3.076
Hisense Type: HOA3.0-TAM9696R
LED Type: SMD1921
Module Resolution: 104 x 52
Module Size (W x H): 320 x 160mm / 12.6 x 6.3inch
Cabinet Dimension (W x H): 960 x 960mm / 37.8 x 37.8inch
Cabinet Resolution: 312 x 312
Cabinet Weight: ≤33kg / ≤72.77lbs
Thickness: 135mm / 5.31inch
Brightness (Nits): 5500 Nits
Contrast Ratio: ≥5000:1
Max Power Consumption (W/sqm): ≤800
Avg Power Consumption (W/sqm): ≤260
IP Rating: Front:IP65/Rear:IP54
Viewing Angle (H/V): ≥140 degrees
Refresh Rate (Hz): >1920~3840


Pixel Pitch: 6
Hisense Type: HOA6.0-TAM9696R
LED Type: SMD2727
Module Resolution: 32 x 32
Module Size (W x H): 192 x 192mm / 7.56 x 7.56inch
Cabinet Dimension (W x H): 960 x 960mm / 37.8 x 37.8inch
Cabinet Resolution: 160 x 160
Cabinet Weight: ≤33kg / ≤72.77lbs
Thickness: 135mm / 5.31inch
Brightness (Nits): 5500 Nits
Contrast Ratio: ≥5000:1
IP Rating: Front:IP65/Rear:IP54
Max Power Consumption (W/sqm): ≤800
Avg Power Consumption (W/sqm): ≤260
Viewing Angle (H/V): ≥140 degrees
Refresh Rate (Hz): >1920~3840


Available Regions
EU
APAC
SA

Pixel Pitch: 4
Hisense Type: HOA4.0-TAM9696R
LED Type: SMD1921
Module Resolution: 80 x 40
Module Size (W x H): 320 x 160mm / 12.6 x 6.3inch
Cabinet Dimension (W x H): 960 x 960mm / 37.8 x 37.8inch
Cabinet Resolution: 240 × 240
Cabinet Weight: ≤33kg / ≤72.77lbs
Thickness: 135mm / 5.31inch
Brightness (Nits): 5500 Nits
Contrast Ratio: ≥5000:1
Max Power Consumption (W/sqm): ≤800
Avg Power Consumption (W/sqm): ≤260
IP Rating: Front:IP65/Rear:IP54
Viewing Angle (H/V): ≥140 degrees
Refresh Rate (Hz): >1920~3840


Pixel Pitch: 8
Hisense Type: HOA8.0-TAM9696R
LED Type: SMD2727
Module Resolution: 40 x 20
Module Size (W x H): 320 x 160mm / 12.6 x 6.3inch
Cabinet Dimension (W x H): 960 x 960mm / 37.8 x 37.8inch
Cabinet Resolution: 120 x 120
Cabinet Weight: ≤33kg / ≤72.77lbs
Thickness: 135mm / 5.31inch
Brightness (Nits): 5500 Nits
Contrast Ratio: ≥5000:1
IP Rating: Front:IP65/Rear:IP54
Max Power Consumption (W/sqm): ≤800
Avg Power Consumption (W/sqm): ≤260
Viewing Angle (H/V): ≥120 degrees
Refresh Rate (Hz): >1920~3840
