55BM66AE

55” 4K UHD Digital Signage Display - 24/7 Operation


Hisense Commercial Display solutions are perfect for high volume retail and corporate installation. A combination of seamless design and enhanced brightness ensure digital content vividly stands out from the crowd. The Hisense M Series display delivers 500 nits brightness for enhanced visibility in brightly lit environments. This higher brightness helps Hisense Commercial Displays provide better colour accuracy and vibrancy, meaning colours appear more lifelike and true to their intended experience, creating a more immersive viewing experience. Hisense M Series display are engineered for 24/7 operation, making them ideal for mission critical environments with zero downtime required.

Round-the-clock operation

Designed with dual-core System on Chip (SoC) technology, Hisense displays can be used as reliable digital signage for both offline and cloud based content 24 hours a day, 7 days a week. You are completely free to choose your content management system to help display your advertising. If necessary the internal memory will allow you to upload media into the display for instant broadcast without the need for external hardware or software.

Smart CMS

Hisense’s CMS platform allows you to edit and arrange playlists, making content management easy and user-friendly. It supports all rich media content in synchronous playback over a multitude of commercial displays. Besides this status monitoring and real-time control will allow you to quickly and centrally respond to any emergency.

178° Wide viewing angle

The extra wide 178° viewing angle is a perfect fit for shoppers, employees or visitors that will view displays from diverse angles while passing by.

Landscape & portrait

Both landscape and portrait orientations are possible, providing you with endless creative and functional possibilities to fulfil your commercial or informative goals.

500 nits

With 500 nits maximum brightness the display panels can deliver amazingly vivid imagery anywhere during daytime and nighttime conditions.

4K Ultra HD

The 4K Ultra HD picture quality* ensures perfect colour and rich details in all possible broadcasting surroundings, ranging from shops, to restaurants and office buildings.

Automatic time zone

When connected to the Internet each display will automatically synchronise to its local timezone. Making sure scheduled media broadcast is always in sync.

Customisation

Hisense’s displays support a variety of on-screen customisations such as custom startup logo, startup animation, wallpaper and many more. Creating a uniform look & feel for all people working with or viewing the displays.

Auto brightness

Thanks to our advanced auto brightness sensor Hisense displays will intelligently adjust their brightness to their surroundings. Making sure energy usage is optimised at all times.

Slim design 12mm

With 12mm bezels the BM66AE displays are the slimmest and most elegant in our range. Making sure your broadcasting content is always the focus of attention.

Dust & humidity protection

The main board and power board of each Hisense BM66AE display is coated so it will effectively resist the erosion by dust and water vapour in public space conditions.

Temperature protection

The BM66AE displays are resistant to high temperatures and have an automatic temperature control mechanism. They will automatically adjust their backlight brightness when their temperature reaches 75°C to cool the display. At 100°C they will automatically switch to standby mode.

Fail over

Stable broadcast is ensured with fail over functionality. When the primary source of content goes down the system will automatically switch to predetermined alternative input. All input sources (HDMI,DVI,VGA,DP) also support auto detect functionality.

Detachable logo

For customisation needs the Hisense logo has been made detachable. If for instance you want to arrange multiple BM66AE displays to form a video wall the logos can be freely removed.

tab

Dimensions

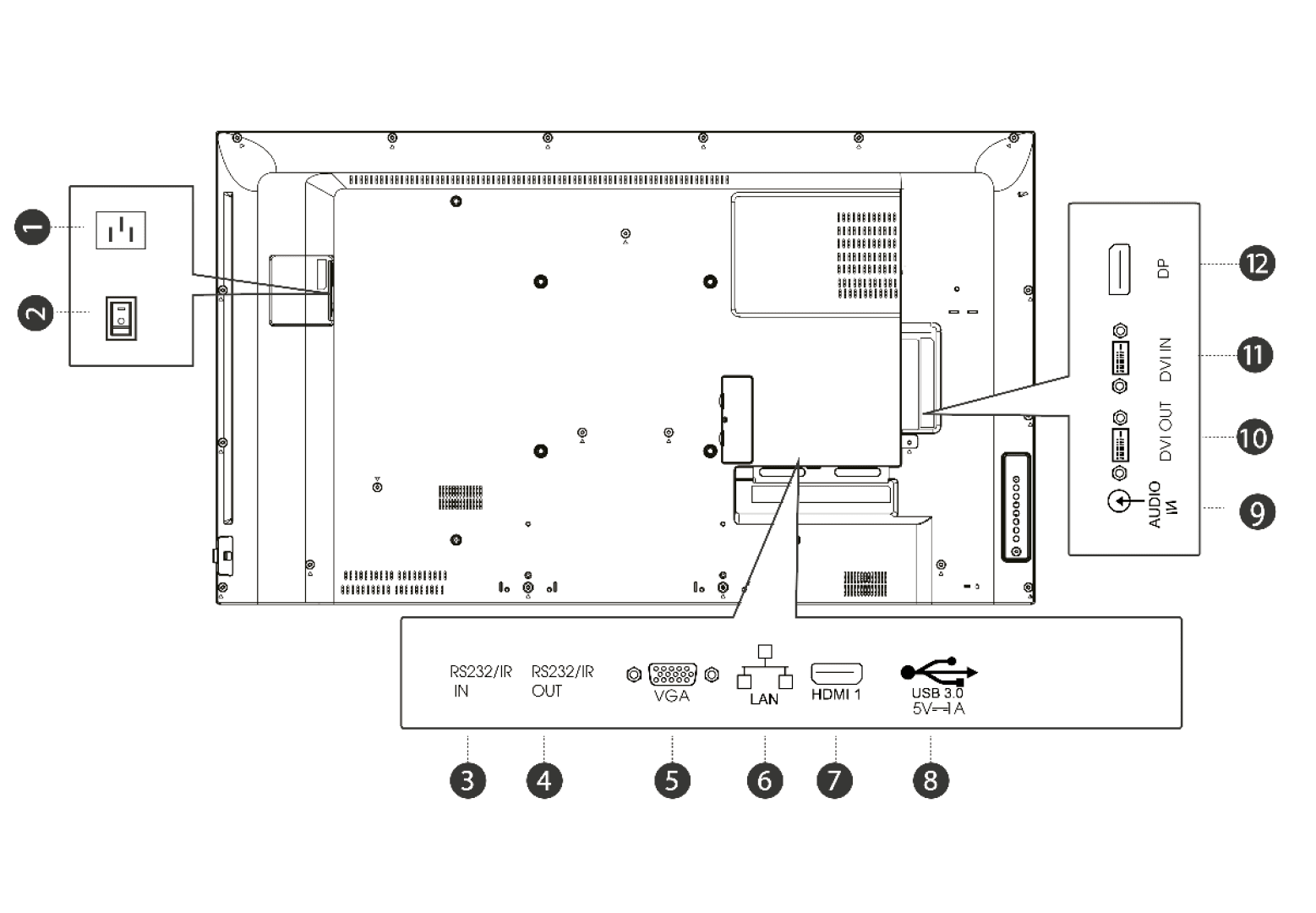

Connectivity


Connectivity

1. AC IN
2. Main Power Switch
3. RS232/IR IN
4. RS232/IR OUT
5. D-sub (VGA IN)
6. Lan
7. HDMI IN
8. USB Port
9. Audio IN
10. DVI OUT
11. DVI IN
12. DP In

EOL

Panel
Backlight: ELED
Panel Type: IPS
Size: 55’’
Resolution: 3840 x 2160
Refresh rate: 60HZ
Brightness: 500 nits (typ)
Contrast(typ): 1100:1 (typ)
Orientation: Landscape & Portrait
Lifetime: 50,000hrs
Operation Hours: 7Day x 24Hour

Control Method
Remote: IR
RS232: RS232*1 (RJ45)

Speaker
Built in speaker: 9W x2
Power
Input: AC 100V-240V@50-60HZ
Power Consumption: 120W(Max)
Standby Consumption: <0.5W

Environment
Operation Temperature: 0 - 40°
Operation Humidity: 20% - 80%

Connectivity
WIFI: 2.4G/5G
LAN: 10/100Mbps

Operating System
OS: Android 9.0

Physical
Bezel Color: Black
Set Dimension(WxHxD):1241×714.5×66mm / 48.86x28.13x2.6inch
Bezel width (T/L/R/B): 11.7mm(T),14.8mm(B),12.2mm(L/R)
Net Weight: 20.5kg / 45.2lbs
Packing Dimension(WxHxD): 1374×143×847mm / 54.09x5.63x33.35inch
Packed Weight: 23kg / 50.7lbs
VESA: 300*300mm

Certification
Standard Certification: CB/CE/ErP/cTUVus/CEC/FCC/RCM

What’s in the box
User manual
Remote controller
Power cord
Logo accessory

Available Regions
EU
USA
APAC
SA
