49WF35M

49” Window Facing - High Brightness Display


Easy to install Window Facing Digital Signage Display’s maximise customer engagement with vivid their image quality. With ultra high brightness of 3500 nits, the Hisense window facing displays will attract attention in any lighting condition.

Round-the-clock operation

Designed with dual-core System on Chip (SoC) technology, Hisense displays can be used as reliable digital signage for both offline and cloud based content 24 hours a day, 7 days a week. You are completely free to choose your content management system to help display your advertising. If necessary the internal memory will allow you to upload media into the display for instant broadcast without the need for external hardware or software.

178° Wide viewing angle

The extra wide 178° viewing angle is a perfect fit for shoppers, employees or visitors that will view displays from diverse angles while passing by.

Landscape & portrait

Both landscape and portrait orientations are possible, providing you with endless creative and functional possibilities to fulfil your commercial or informative goals.

Visible With Polarized Sunglasses

LED display correction technology could uniformly lighten several hundred thousand LED lights, presenting a uniform display effect with the same brightness and color scale.

Smart Brightness Sensor

Self-heat dissipation design, energy saving and noise reduction improve the service life.

3500 nits

LED display could reveal more details, including layers and colors, than traditional displays do.

tab

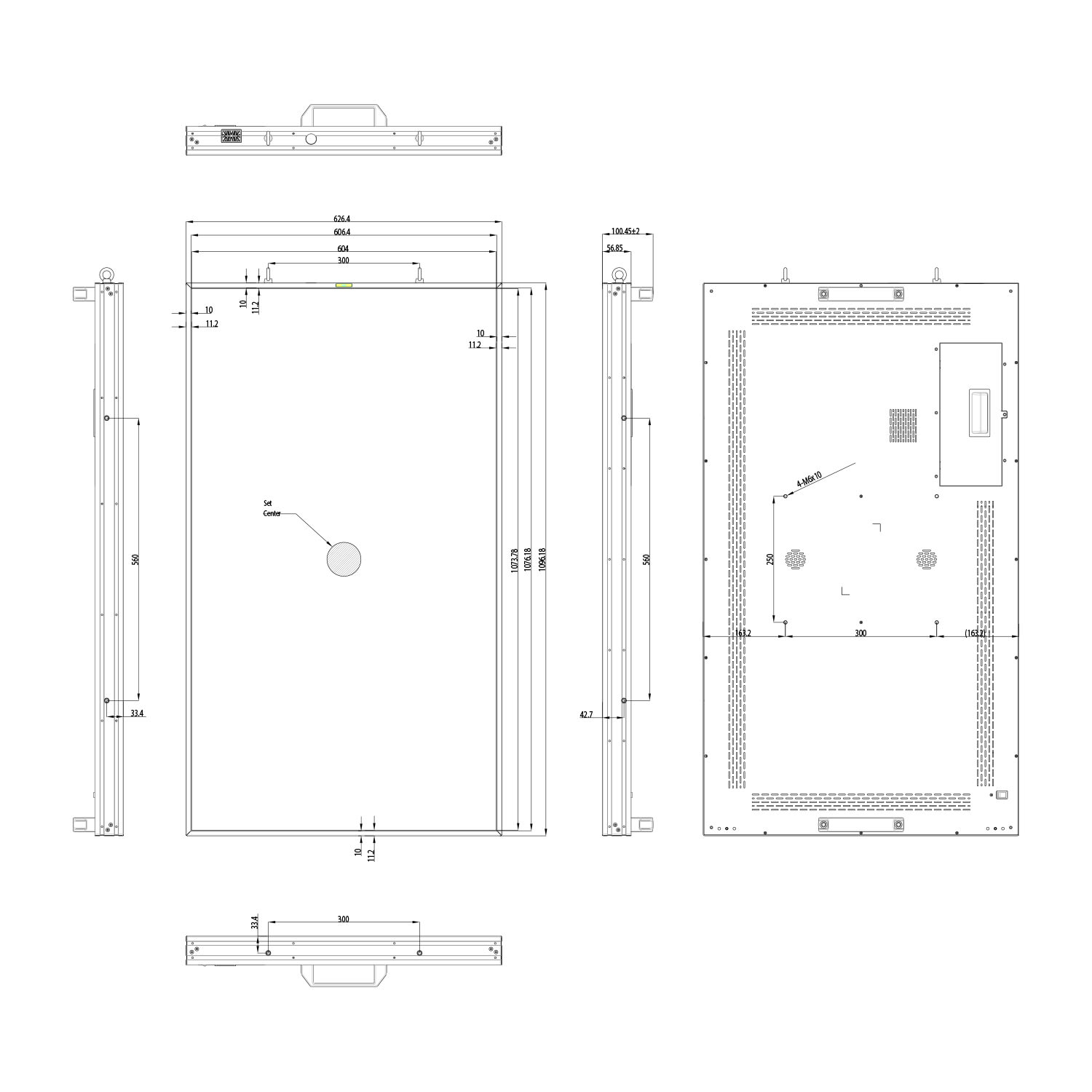

Dimensions


Connectivity


EOL

General
Model: 49WF35M
Screen size: 49"
Screen Active Area(mm): 1073.8x604.0
Resolution : FHD(1920x1080)
Aspect Ratio: 16:9
Brightness(nit): 3500nits
Contrast Ratio: 1300:1
Dynamic CR: Up to 350000:1
Viewing Angle(H/V): 178°/178°
Backlight Life Cycle: 50,000 Hrs
Operation Hours: 24/7
Response Time: 8ms
Screen Orientation: Portrait or Landscape

System
OS: Android 9.0
CPU: ARM Quad Core Cortex-A53 1.5G
GPU: Arm Mali-G52 2EE MC1
DDR: DDR 2GB
ROM: 16GB EMMC
Language: Chinese/English

Connectivity
Input: USB2.0 x2, HDMI IN x2, Ethernet RJ45 x2, RS232 RJ45 x1, IR in x1, Sensor x1
Output: HDMI Out x1, Audio out x1

Network connection
Wifi or LAN: Yes
3G/4G connection: Optional

Speaker
Build in speaker: Yes
Line-out Support: Yes
BT Speaker Support: Yes

Thermal management
Smart Backlight Control: Yes
Smart Temperature Control: Yes
Smart Fans Control: Fanless
Smart Monitoring System Cloud: Optional / CetusMSC
Overheating protection: Yes

Physical
IP rating: IP5X (Front Panel)
Glass: No
Shell: Aluminum
Standard Color: Black
Bezel width(T/L/R/B): 10mm(T/B/L/R)
Dimensions: 1096.18(H) x 626.4(W) x 56.75(D) mm
Net Weight: 23.6kg
Packing Dimensions(W×H×D): 1224(W) x 759(H) x 180(D) mm
VESA: 300 x 250mm
20GP container capacity (pcs): 96 PCS
40GP container capacity (pcs): 216 PCS

Operation
Working environment: Indoor window facing
Auto Brightness control: Light sensor
Operation Temperature (ambient temp.): -10oc to 35oc (Direct Sunlight) -10oc to 45oc (w/o Direct Sunlight)
Operation Humidity: 10% to 80%
Storage Temperature: -10oc to +60oc
Storage Humidity: 10% to 80%

Power
Power Supply: AC 110 /220V,50/60Hz
Power Type: Built-In Power

What’s in the box
Accessories: Power cord \ IR receiver \ Remote Control \ AAA batteries x2 \ Wifi antenna \ Lifting ring(M6) x2 \ Fillier pad(M6) x2 \ Spring pad(M6) x2 \ User manual (Electronic version)
