HAIO138

138” LED All-in-one Display


Create the ultimate immersive AV experience for your boardroom with the Hisense All-In-One LED display. Delivering vivid detail and unrivalled colour depth, the All-in-one 138” LED display will provide finishing touch to any quality meeting space.

500 nits

With 500 nits maximum brightness the display panels can deliver amazingly vivid imagery anywhere during daytime and nighttime conditions.

160° Wide viewing angle

The extra wide 160° viewing angle is a perfect fit for large groups of people that will view the displays from diverse angles while passing by.

High refresh rate

With uniform color scale and brightness, dynamic performance of LED display could restore the true scenes without any ripples.

Effortless set-up and maintenance

Easy access allows for effortless set up, operation and maintenance.

Full array local dimming

Local dimming reduces backlight intensity in specific areas of the screen to improve the contrast ratio.

HRC12 grade multi-layer protection

Dustproof, waterproof, anti-static, anti-knock and anti-salt spray.

tab

Dimensions


Connectivity

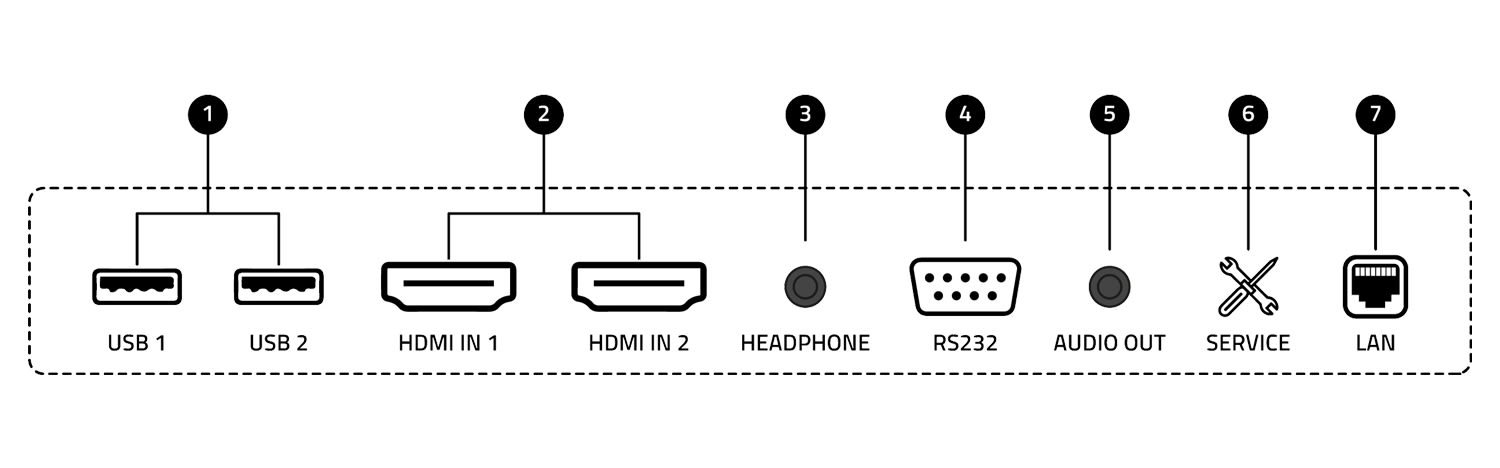

Connectivity

  • 1   USB X 2
  • 2  HDMI IN X 2
  • 3  HEADPHONE
  • 4  RS232
  • 5  AUDIO OUT
  • 6  SERVICE
  • 7  LAN
EOL

Physical Parameter
Pixel Pitch: 1.59 mm
Pixel Configuration: 3 in one SMD
Screen Resolution: 1,920 x 1,080
Module Dimensions (W x H): 127.5 x 191.25mm / 5.02 x 7.53inch
Screen Dimensions (W x H x D) (mm): 3068 x 1723 x 34mm / 120.79 x 67.83 x 1.34inch (w/o Screen Frame)
Physical Resolution of Module:  80 x 120
Physical Resolution of Panel: 320 x 360
LED Module Dimensions (mm): 127.5 x 191.25mm
No. of Cabinet Per Screen:  4 x 3
No. of Modules Per Cabinet: 6 x 3
Panel Dimensions (mm): 510 x 573.75 x 34mm
Screen Weight: 195Kg (w/o Screen Frame)
Cabinet Material: Die-cast Aluminum
Gray Level (bit): 14 bits
Aspect Ratio: 16:9

Optical Parameter
Brightness (adjustable): 500 nits
Contrast Ratio: 3,000 : 1
Visual Viewing Angle (H x V): 160° x 160°
Brightness Uniformity: 95%
Color Uniformity: ± 0.003 Cx,Cy
Processing Depth: 16 bits
Color Temperature - Default (Adjustable): 6500 ± 200 K (2,000 ~ 9,300 K)

Electrical Parameter
Power Supply Voltage: 100 - 240 V
Average Power Consumption (W/ Screen): ≤ 1000
Max Power Consumption (W / Screen): ≤ 2200
Refresh Rate: 3,840 Hz

Operation Conditions
Operating Temp/Humidity: -0 - 40 °C/ 10% - 90%RH (no frost)
Storage Temp/Humidity: -20 - 40 °C/ 10% - 65%RH (no frost)
IP Rating: IP50
Expected LED Lifetime (Max): 100,000 Hrs

Speaker
Built-in: 15W x4
External: 3.5-mm AUDIO external sound system connector (prior to the built-in sound system connector)

System
OS: Android 9.0
CPU: CA73 x 4 1.3GHz
GPU: G52 MC1
DDR: 3GB
ROM: 64GB
Language: English

Curve Installation
Curve Support (-:concave +: convex): Flat

Certification
CE / CB / FCC / ETL

Controller
Built-in

Available Regions
EU
APAC
SA
