HAIO136

136” LED All-in-one Display


Create the ultimate immersive AV experience for your boardroom with the Hisense All-In-One LED display. Equipped with Hisense’s unique ASIC picture quality solution for precision dimming it controls each LED pixel to accurately express brightness and chromaticity information. Delivering vivid detail and unrivalled colour depth, the All-in-one 136” LED display will provide finishing touch to any quality meeting space.

Simple Precise Design

Industrial aesthetic minimalist integrated design. The thinnest lightweight body at only 27.8mm means occupying less space for the display. An ultra-narrow bezel, 95% screen ratio and elegant design of wall bracket and mobile cart.

Stereo Surround Sound

Equipped with 60W built in speakers, Dolby & DTS audio dual decoding, impactful bass and crisp treble to create a truly immersive stereo surround sound.

AI Picture Quality Solution

The display adapts in real time to achieve the best picture parameters based on intelligent recognition of the screen content. The display controls each LED pixel to accurately express brightness and chromaticity information, significantly improving the brightness and contrast of the large screen.

Super Energy Saving

Super energy saving standby design, no signal standby power consumption <0.5W. The energy-saving design can save more than 20% compared with conventional products in the industry under same working condition.

Smart Display

Automatically adjust the brightness of the LED all-in-one screen according to the environment. Automatic all-round monitoring of the screen status. Up to three intelligent screen casting methods.

Quick Installation & Easy Maintenance

Complete installation within 1.5 hours for 2 persons with a fully automated configuration setup. Full front installation and maintenance helps to minimise installation space.

tab

Dimensions


Connectivity

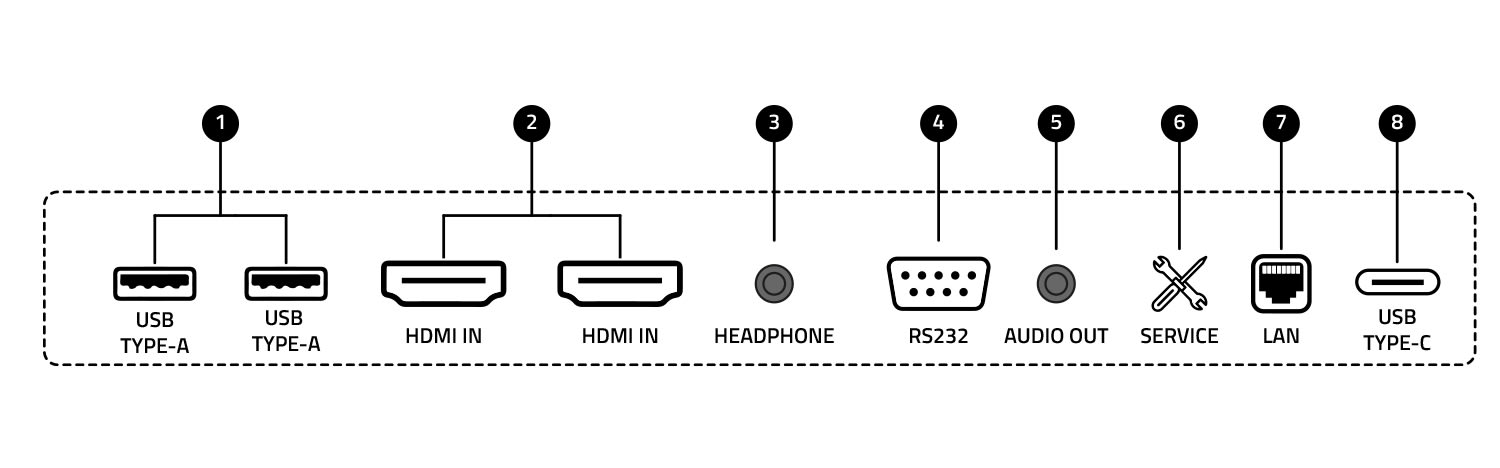

Connectivity

  • 1   USB (TYPE A) X 2
  • 2  HDMI IN X 2
  • 3  HEADPHONE
  • 4  RS232
  • 5  AUDIO OUT
  • 6  SERVICE
  • 7  LAN
  • USB TYPE C

Physical Parameter
Pixel Pitch: 1.5625 mm
Pixel Configuration: 3 in one SMD
Screen Resolution (W x H): 1920x1080
Module Dimensions (W x H): 150 x 337.5mm / 5.9 x 13.3inch
No. of Modules Per Screen (W × H): 20 x 5 (Total 100 Pcs LED Modules)
Screen Dimensions (W x H x D): 3004 x 1774.5 x 32.3mm / 118.3 x 69.9 x 1.27inch (with Screen Frame)
Cabinet Dimensions (W × H × D): 600 x 337.5 x 29.3mm / 23.6 x 13.3 x 1.15inch
Weight (per Cabinet/per Screen): 4kg / 110Kg [8.82lbs / 242.55lbs]
Pixel Density: 409,600 pixels/m2
Flatness Of Cabinet: ± 0.05 mm
Cabinet Material: Die-cast Aluminum
Gray Level: 14 bits
Aspect Rati: 16:9
Service Access: Front

Optical Parameter
Brightness: 100~600 Nits Adjustable
Contrast Ratio: 5,000 : 1
Visual Viewing Angle (H x V): 150° x 140°
Brightness Uniformity: 95%
Color Uniformity: ± 0.003 Cx,Cy
Processing Depth: 14 bits
Color Temperature - Default (Adjustable): 9300 K (2,000 ~ 9,300 K)

Electrical Parameter
Power Supply Voltage: 100 - 240 V, 50/60Hz
Average Power Consumption (W/ Screen): ≤ 800W
Max Power Consumption (W/ Screen): ≤ 1800W
Refresh Rate: 3,840 Hz

Operation Conditions
Operating Temp/Humidity: 0 - 40 °C/ 10% - 90%RH (no  frost)
Storage Temp/Humidity: -20 - 40 °C/ 10% - 65%RH (no  frost)
IP Rating: IP50
Expected LED Lifetime (typ): 100,000 Hrs

Speaker
Built-in: 10W×6
External: 3.5-mm AUDIO external sound system connector (prior to the built-in sound system connector)

System
OS: Android 9.0
CPU: CA73*4 1.3GHz
GPU: G52 MC1
DDR: 3GB
ROM: 64GB
Language: Chinese/English(Default)/ French, German, Spanish, Italian, Polish, Arabic, Russian
Features: HDR/EMMC/Low blue light/Dolby/DTS

Certification
Standard Certification: CE, CB, FCC, RCM, cTUVus
Environment: RoHS, REACH

Controller
Embedded
