XIHFE Series - Indoor LED Display
Energy efficient
The XIHFE series achieves a breakthrough power consumption, providing 46% higher efficiency than the previous generation COB display, resulting in optimised operating costs and reduced environmental impact.
Extremely Reliable
The flip-chip COB LED eliminates bonding wires by directly soldering electrodes onto the PCB, eliminating concerns about wire breakage. Its integrated packaging structure significantly enhances environmental resistance. The display adopts large LED modules in a 2x2 arrangement, ensuring easy and quick installation.
Eye-catching Display
The COB product is encapsulated with black epoxy resin on the surface, ensuring color uniformity and brightness consistency. Supporting HDR formats, it achieves richer color performance and enhanced detail gradation, creating a more immersive viewing experience.
Lightweight structure
The cabinet weighs as light as 3.5kg, 36% lighter than the previous generation, with 11% reduced thickness. The lightweight construction simplifies installation procedures, enabling faster deployment and more convenient disassembly/replacement.

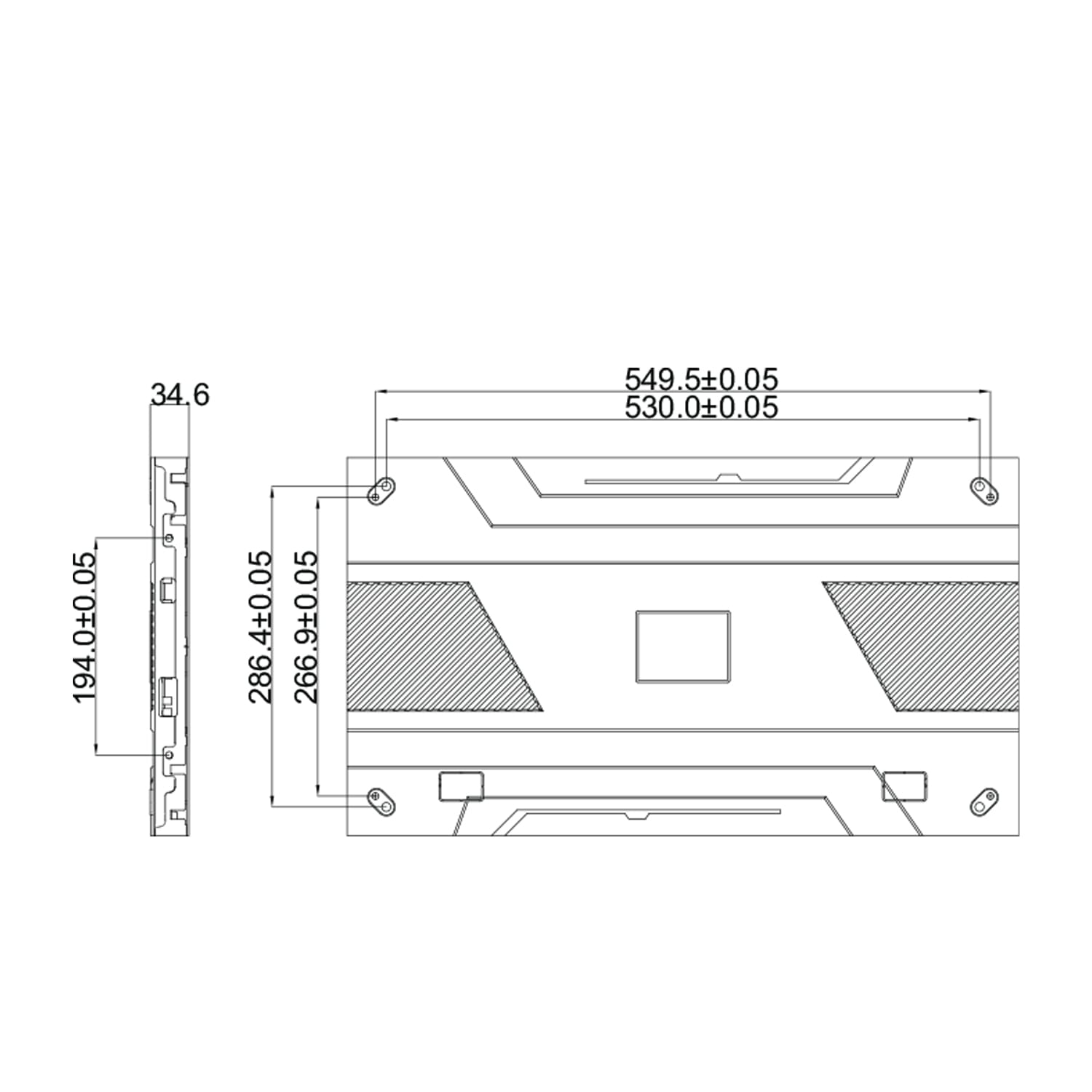

Dimensions
Connectivity
Model: XIH009FE
Pixel Pitch: P0.9375
Pixel Configuration: Flip-chip COB (1, Red, 1 Green, 1 Blue)
Module Resolution (W x H): 320 x 180
Module Dimension (W x H): 300 x 168.75mm / 11.81 x 6.64 inch
Cabinet Resolution (W x H): 640 x 360
Cabinet Dimension (W x H x D): 600 x 337.5 x 34.6mm / 23.62 x 13.29 x 1.36 inch
No. of Modules per Cabinet (W x H): 2 x 2
Cabinet Weight: 3.5kg / 7.71lbs
Cabinet Materials: Die-cast Aluminium
Brightness (Typ.): 600 nits (100~800 nits Adjustable)
Contrast Ratio: 10,000:1 @10lux (According to the current Hisense test environment)
Visual Viewing Angle (H x V): 160°x 160°
Bit Depth: 14 bit
Color Temperature: 3,000~18,000 K (Adjustable)
Color Gamut: >90% BT.2020
Brightness Uniformity: 98%
Color Uniformity: +0.003 Cx, Cy
Max Power Consumption per Cabinet: 63 W@800nits / 53 W@600nits
Avg Power Consumption per Cabinet: 35 W@800nits / 27 W@600nits
Max Power Consumption per Unit Area: 310 W/m2@800nits / 260 W/m2@600nits
Avg Power Consumption per Unit Area: 170 W/m2@800nits / 130 W/m2@600nits
Power Supply: 100~240 V AC
Refresh Rate: 3,840 Hz
Operating Temp / Humidity: -10~40°C / 10~90% RH
Storage Temp / Humidity: -20~60°C / 10~90% RH
IP Rating: IP20
Lifetime: 100,000 Hrs
Maintenance: Front Access
Model: XIH018FE
Pixel Pitch: P1.87
Pixel Configuration: Flip-chip COB (1, Red, 1 Green, 1 Blue)
Module Resolution (W x H): 160 x 90
Module Dimension (W x H): 300 x 168.75mm / 11.81 x 6.64 inch
Cabinet Resolution (W x H): 480 x 270
Cabinet Dimension (W x H x D): 600 x 337.5 x 34.6mm / 23.62 x 13.29 x 1.36 inch
No. of Modules per Cabinet (W x H): 2 x 2
Cabinet Weight: 3.5kg / 7.71lbs
Cabinet Materials: Die-cast Aluminium
Brightness (Typ.): 600 nits (100~800 nits Adjustable)
Contrast Ratio: 10,000:1 @10lux (According to the current Hisense test environment)
Visual Viewing Angle (H x V): 160°x 160°
Bit Depth: 14 bit
Color Temperature: 3,000~18,000 K (Adjustable)
Color Gamut: >90% BT.2020
Brightness Uniformity: 98%
Color Uniformity: +0.003 Cx, Cy
Max Power Consumption per Cabinet: 65 W@800nits / 53 W@600nits
Avg Power Consumption per Cabinet: 33 W@800nits / 29 W@600nits
Max Power Consumption per Unit Area: 330 W/m2@800nits / 265 W/m2@600nits
Avg Power Consumption per Unit Area: 165 W/m2@800nits / 145 W/m2@600nits
Power Supply: 100~240 V AC
Refresh Rate: 3,840 Hz
Operating Temp / Humidity: -10~40°C / 10~90% RH
Storage Temp / Humidity: -20~60°C / 10~90% RH
IP Rating: IP20
Lifetime: 100,000 Hrs
Maintenance: Front Access
Model: XIH012FE
Pixel Pitch: P1.25
Pixel Configuration: Flip-chip COB (1, Red, 1 Green, 1 Blue)
Module Resolution (W x H): 240 x 135
Module Dimension (W x H): 300 x 168.75mm / 11.81 x 6.64 inch
Cabinet Resolution (W x H): 480 x 270
Cabinet Dimension (W x H x D): 600 x 337.5 x 34.6mm / 23.62 x 13.29 x 1.36 inch
No. of Modules per Cabinet (W x H): 2 x 2
Cabinet Weight: 3.5kg / 7.71lbs
Cabinet Materials: Die-cast Aluminium
Brightness (Typ.): 600 nits (100~800 nits Adjustable)
Contrast Ratio: 10,000:1 @10lux (According to the current Hisense test environment)
Visual Viewing Angle (H x V): 160°x 160°
Bit Depth: 14 bit
Color Temperature: 3,000~18,000 K (Adjustable)
Color Gamut: >90% BT.2020
Brightness Uniformity: 98%
Color Uniformity: +0.003 Cx, Cy
Max Power Consumption per Cabinet: 65 W@800nits / 53 W@600nits
Avg Power Consumption per Cabinet: 33 W@800nits / 29 W@600nits
Max Power Consumption per Unit Area: 330 W/m2@800nits / 265 W/m2@600nits
Avg Power Consumption per Unit Area: 165 W/m2@800nits / 145 W/m2@600nits
Power Supply: 100~240 V AC
Refresh Rate: 3,840 Hz
Operating Temp / Humidity: -10~40°C / 10~90% RH
Storage Temp / Humidity: -20~60°C / 10~90% RH
IP Rating: IP20
Lifetime: 100,000 Hrs
Maintenance: Front Access
Model: XIH015FE
Pixel Pitch: P1.56
Pixel Configuration: Flip-chip COB (1, Red, 1 Green, 1 Blue)
Module Resolution (W x H): 192 x 108
Module Dimension (W x H): 300 x 168.75mm / 11.81 x 6.64 inch
Cabinet Resolution (W x H): 384 x 216
Cabinet Dimension (W x H x D): 600 x 337.5 x 34.6mm / 23.62 x 13.29 x 1.36 inch
No. of Modules per Cabinet (W x H): 2 x 2
Cabinet Weight: 3.5kg / 7.71lbs
Cabinet Materials: Die-cast Aluminium
Brightness (Typ.): 600 nits (100~800 nits Adjustable)
Contrast Ratio: 10,000:1 @10lux (According to the current Hisense test environment)
Visual Viewing Angle (H x V): 160°x 160°
Bit Depth: 14 bit
Color Temperature: 3,000~18,000 K (Adjustable)
Color Gamut: >90% BT.2020
Brightness Uniformity: 98%
Color Uniformity: +0.003 Cx, Cy
Max Power Consumption per Cabinet: 53 W@800nits / 41 W@600nits
Avg Power Consumption per Cabinet: 30 W@800nits / 27 W@600nits
Max Power Consumption per Unit Area: 265 W/m2@800nits / 205 W/m2@600nits
Avg Power Consumption per Unit Area: 150 W/m2@800nits / 135 W/m2@600nits
Power Supply: 100~240 V AC
Refresh Rate: 3,840 Hz
Operating Temp / Humidity: -10~40°C / 10~90% RH
Storage Temp / Humidity: -20~60°C / 10~90% RH
IP Rating: IP20
Lifetime: 100,000 Hrs
Maintenance: Front Access
